Ref.: 968750 49

High-lift pallet truck electric

High-lift pallet truck
Convenient electro-hydraulic system
High-lift pallet truck, electric, max. load 1000 kg-0

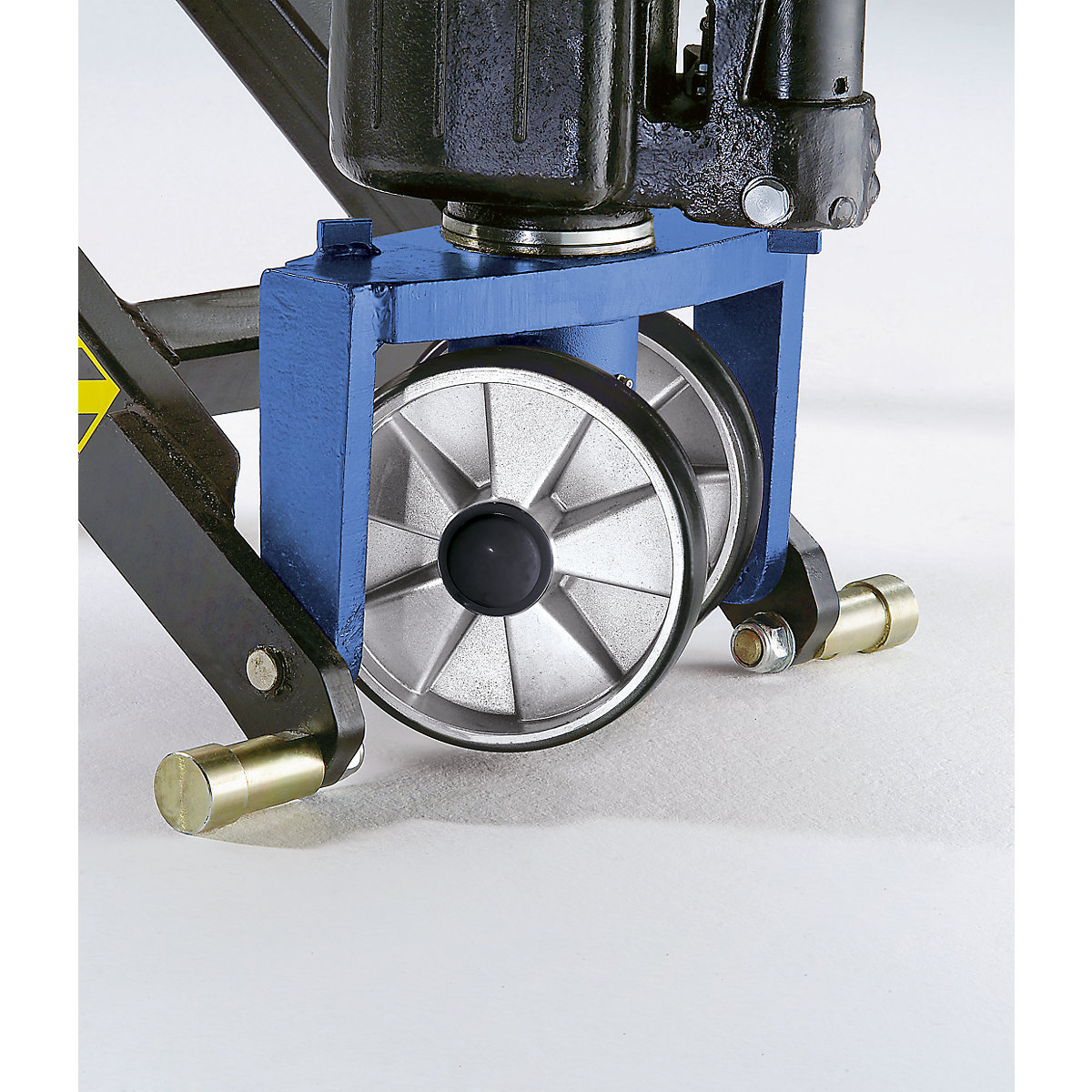

High-lift pallet truck (Product illustration 2)-1

max. load 1000 kg

£2,379.00
Price / item (Excl. VAT)

Only 4 available

Product description
Efficient load management and ergonomic working in warehouses, production and mailing logistics: the high-lift pallet truck combines load handling, load provision and load lifting functions. Easily lift pallets with goods to an ergonomic working height without straining your back.

The integrated QuickLift function saves you valuable time and energy. Active up to a max. load of 100 kg, light loads are lifted quickly. Heavier loads are lifted more slowly, but less effort is required. For additional safety, the high-lift pallet truck features an automatic lowering speed control and an overload pressure valve to protect the device. The additional supports ensure a stability when the forks are raised, while the polyurethane wheels enable non-marking operation without damaging the floor. The high-lift pallet truck is equipped with a single cylinder telescopic hydraulic system that is robust and hardwearing.

This versatile device can also be used as a pallet truck. The high-lift pallet truck is a practical combination of a pallet truck and lift table that will optimise your warehouse logistics and work processes. Use it for practical lifting and movement of pallets and heavy loads, for storing and retrieving materials, or for loading machines.

With an electro-hydraulic unit for quick lifting with minimal effort. Adjust height smoothly and evenly at the push of a button when working at frequently changing heights. Integrated 6 A impulse charger. Manual hydraulics are also fully functional at all times.
  • Convenient electro-hydraulic system
  • Lift, move and deploy loads
  • Ergonomic work at the ideal height
  • With QuickLift
  • Robust and durable single cylinder telescopic hydraulic unit
  • Additional supports for stability when forks are lifted
  • Non-marking polyurethane wheels for sensitive floors
QUICKLIFT
Lifts faster – saves effort and time!
QUICKLIFT. Lifts faster – saves effort and time!
Technical data
Max. load1000 kg
Lifting range85 – 800 mm
Lift driveelectro-hydraulic
Fork length1190 mm
Fork width160 mm
Distance across forks560 mm
Length1676 mm
Width560 mm
Height1286 mm
Steering radius210 °
Mobile up to lifting height400 mm
Lift per pump stroke with QuickLift19 mm
Lift per pump stroke11 mm
Steering wheel materialpolyurethane
Steering wheel diameter180 mm
Steering wheel width55 mm
Fork roller materialpolyurethane
Fork roller versionsingle
Fork roller diameter75 mm
Fork roller width75 mm
Colourmelon yellow RAL 1028
Finishpowder coated
Battery12 V / 70 Ah
Battery charger6 A impulse charger
Lifting time without load13 sec
Lifting time with full load22 sec
Featuremanual
mobile
FittingsQuickLift
Product typehigh-lift pallet trucks
Suppliedassembled
Weight175 kg
