Ref.: 119846 49

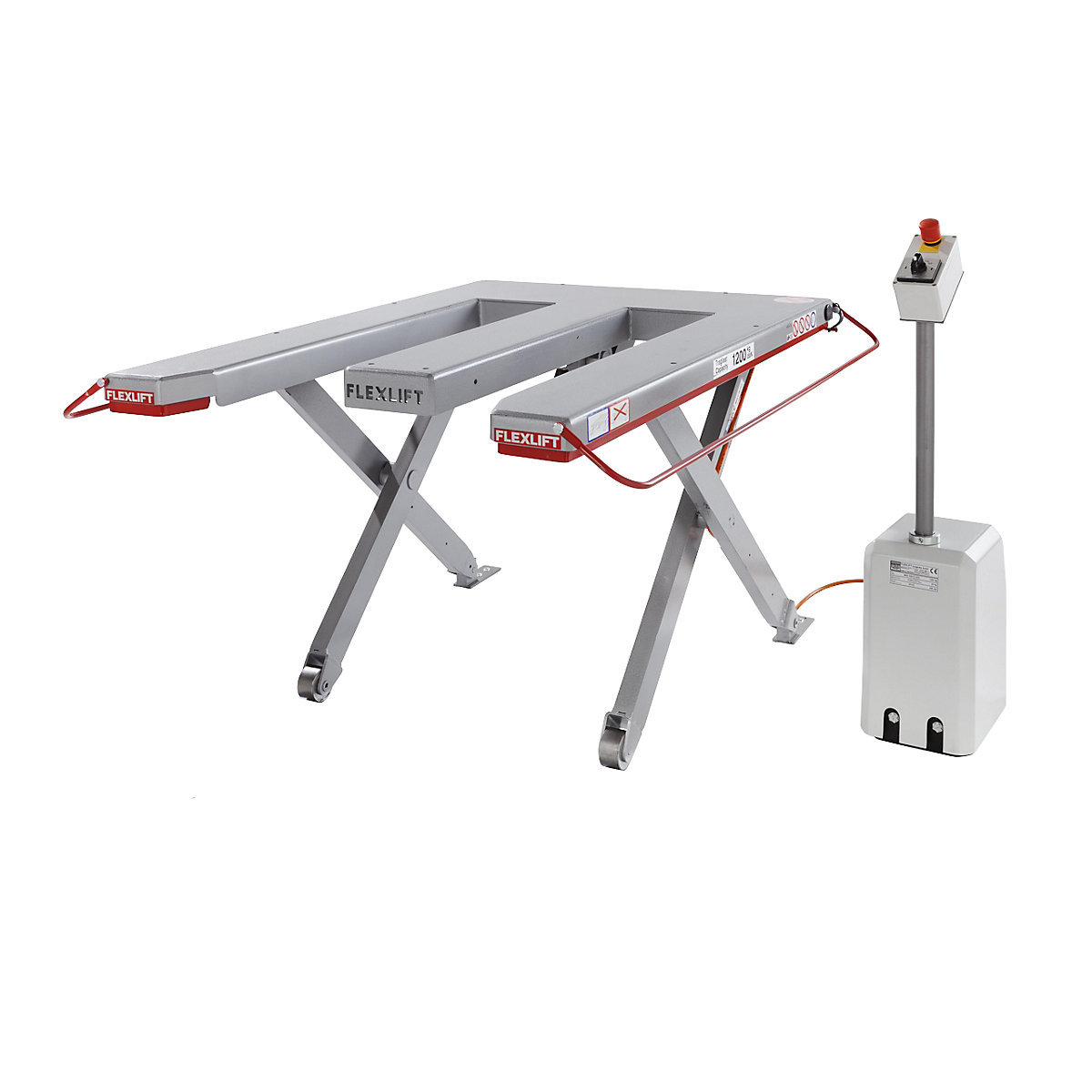

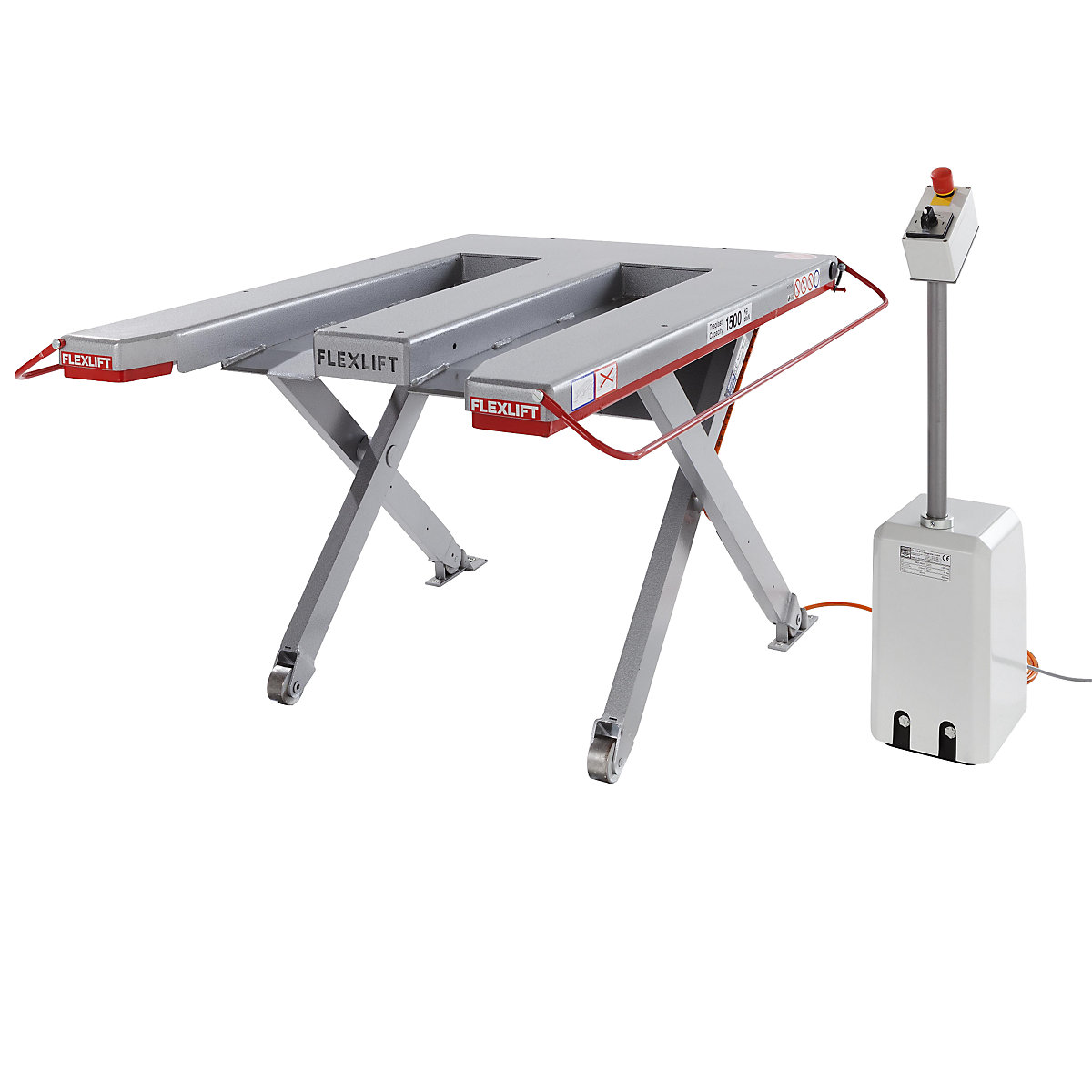

Low profile lift table, E series – Flexlift max. load 1500 kg
LxW 1300 x 1150 mm, 230 V AC
Operating voltage
Platform width [mm]
This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 119846 49
Low profile lift table, E series – Flexlift max. load 1500 kg
LxW 1300 x 1150 mm, 230 V AC
LxW 1300 x 1150 mm, 230 V AC
Ref.: 119846 49
Product not available
Currently not available for this quantityProduct description
- Made in Germany by FLEXLIFT
- For Euro pallets, industrial pallets, mesh pallets
- All-round foot clearance without a floor frame for top ergonomics
- Portable compact hydraulic power unit with manual operation on the stand
- E-shaped platform
Premium quality hydraulic components.
Non-electric foot contact rail, completely hydraulic operation.
Extraordinarily stable! Solid full steel scissor mechanism made of ST-52 tool steel.
The entire drive technology and the hydraulic cylinders are protected from shock and dirt by a 5 or 6 mm thick sheet metal platform.
High quality 2 layer paint finish in Hammerite silver.

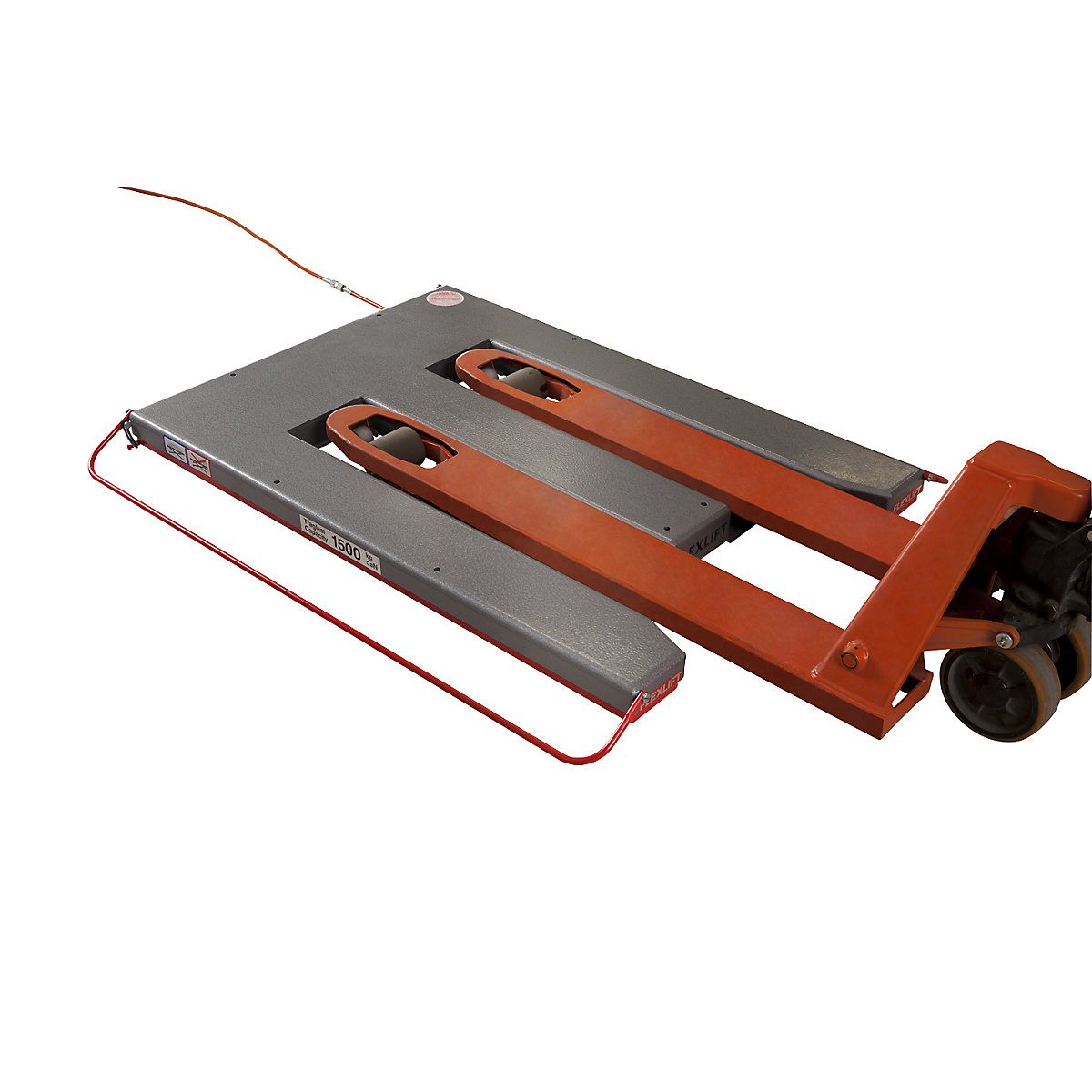

The tables are loaded by entering the floor-level E-shape with the pallet truck. E-platform. The centre strut prevents the pallet from bending.
Includes fix point bearing for anchoring to floor.
Low overall height of 80 mm.
Safety rails are not required for a platform width of 1150 mm.
Complies with EN 1570-1.
Options available at no extra cost:
Hand control with 3 m cable or foot switch. Stationary model can also be made mobile by means of a fixed point bearing.
Non-electric foot contact rail, completely hydraulic operation.
Extraordinarily stable! Solid full steel scissor mechanism made of ST-52 tool steel.
The entire drive technology and the hydraulic cylinders are protected from shock and dirt by a 5 or 6 mm thick sheet metal platform.
High quality 2 layer paint finish in Hammerite silver.
The tables are loaded by entering the floor-level E-shape with the pallet truck. E-platform. The centre strut prevents the pallet from bending.
Includes fix point bearing for anchoring to floor.
Low overall height of 80 mm.
Safety rails are not required for a platform width of 1150 mm.
Complies with EN 1570-1.
Options available at no extra cost:
Hand control with 3 m cable or foot switch. Stationary model can also be made mobile by means of a fixed point bearing.
On request:
Lift and tilt, lift and turn, lift and transport.
Other dimensions, lifting heights, max. loads, reduced lifting time, zinc plated or made of V2A stainless steel, ribbed sheet steel platform, ATEX compliant explosion protection.
Lift and tilt, lift and turn, lift and transport.
Other dimensions, lifting heights, max. loads, reduced lifting time, zinc plated or made of V2A stainless steel, ribbed sheet steel platform, ATEX compliant explosion protection.
10 year guaranteed provision with replacement parts for all Flexlift lifting tables.
4 year guarantee
Technical data
| Max. load | 1500 kg |
|---|---|
| Lifting range | 80 – 750 mm |
| Platform design | E-shaped |
| Lifting time | 19 sec |
| Lift drive | compact hydraulics |
| Platform colour | hammer tone silver |
| Platform material | sheet metal |
| Scissor mechanism colour | hammer tone silver |
| Scissor material | ST 52 tool steel |
| Finish | painted |
| Product type | low profile lift tables |
| Lifting capacity at full load in 1 shift operations | max. 20 cycles per hour |
| Lifting capacity at full load in multiple-shift operations | max. 10 cycles per hour |
| Platform length | 1300 mm |
| Feature | stationary electro-hydraulic |
| Supplied | assembled |
| Operating voltage | 230 V AC |
| Platform width | 1150 mm |
| Weight | 330 kg |
| Instructions |
