Ref.: 656772 49

Electric explosion protected drum/container pump set – Jessberger for flammable media, 112 l/min

Electric explosion protected drum/container pump set – Jessberger
Electric explosion protected drum/container pump set – Jessberger, for flammable media, 112 l/min, 16 m-0
Electric explosion protected drum/container pump set – Jessberger (Product illustration 2)-1
Electric explosion protected drum/container pump set – Jessberger (Product illustration 3)-2

16 m

£3,190.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Product description

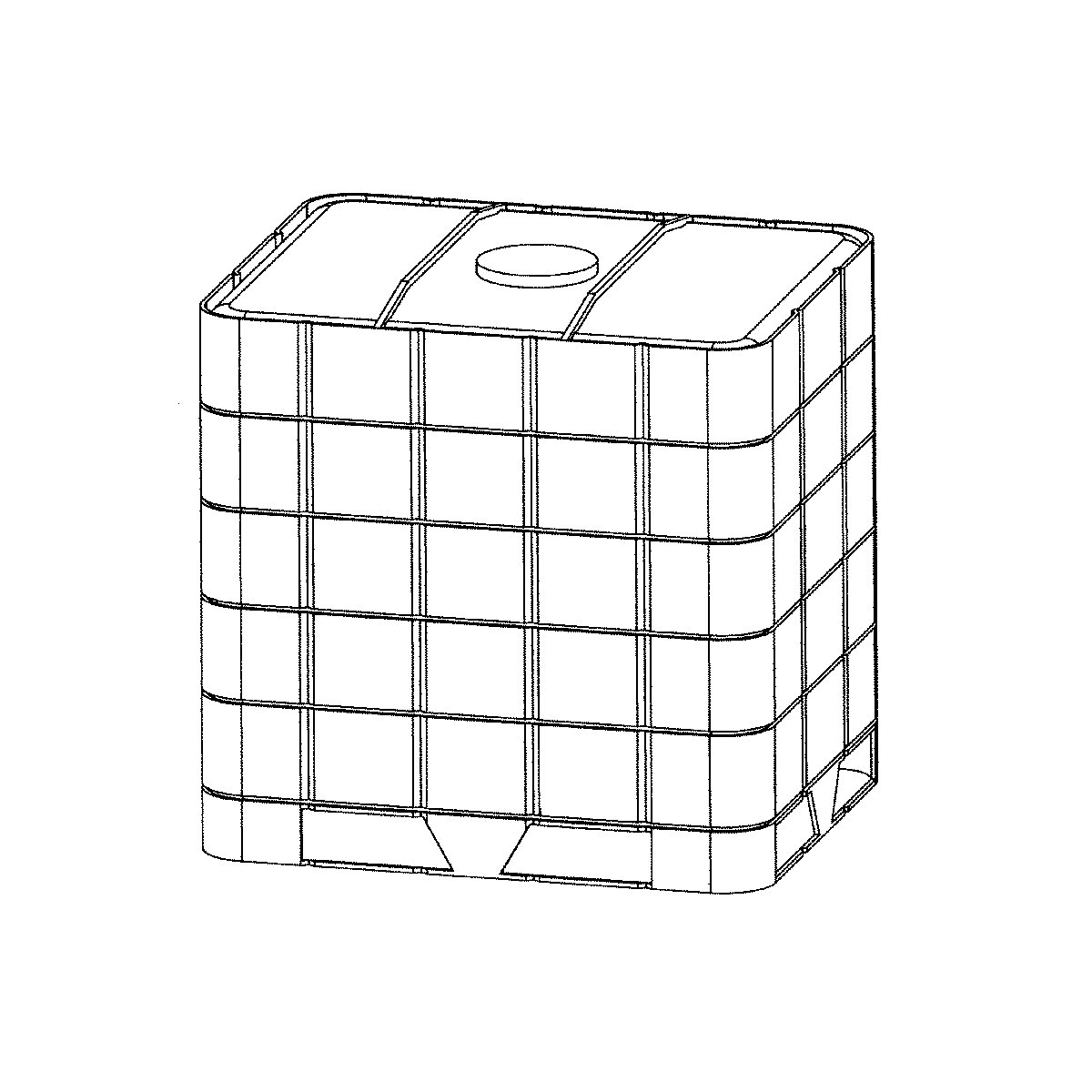

  • Safe, explosion protected emptying of 1000 litre IBC/CTC containers and 200 litre drums
  • Low pump weight – easy to handle
  • Practical pump set – ready for immediate use
Electric, explosion protected container pump set for IBC/CTC tank containers and 200 litre drums – for flammable, easily combustible media.

Max. 112 l/min, max. 16 m height, max. viscosity 1000 mPas, max. density 1.9 g/cm³.
Stainless steel pump unit, crosslinked polyethylene hose, brass nozzle with PTFE seals.

Drum pump motor
230 V, 50/60 Hz, 825 W, protection class II 2G Ex db IIC T6 Gb, IP55, overload protection with zero voltage trip, 5 m cable without plug (please note that the customer is responsible for connection).
EC type test by Bureau Veritas EPS 17 ATEX 1 088 X and IECEx certificate IECEx EPS 17.0045 X.

Pump unit:
Stainless steel 1.4571, external Ø 41 mm, connection thread G 1 1/4'', stainless steel shaft, immersion tube length 1200 mm for IBC/CTC tank containers and 200 litre drums (pump then extends beyond the drum by approx. 200 mm).
EC type test ZELM 09 ATEX 0424 X.

2 m conductive multi-purpose hose, 1'' (NW 25).
2 stainless steel hose connections, IG 1 1/4'' or IG 1''.
1 nickel plated brass nozzle with PTFE seals.
1 potential equalisation cable set for earthing the pump.
For flammable liquids
For flammable liquids
Technical data
Design of pumpelectric container pump set for drums, explosion protected
For mediaslightly flammable media
Material of pumpstainless steel
Drive shaft materialstainless steel
Immersion depth1200 mm
Immersion tube diameter41 mm
Pump rate112 l/min
Pumping height16 m wc
Tube diameter41 mm
Immersion tube length1200 mm
Nominal hose diameter25
Thread1 1/4 inch
Max. viscosity at +20 °C1000 mPas
Featureexplosion protected
Scope of deliverypump, 2 m conductive multi-purpose hose, 1'' (NW 25), 2 stainless steel hose connections, 1 1/4'' or 1'' internal threads, 1 nickel plated brass nozzle with PTFE seals, 1 potential compensation cable set
Voltage230 V
Power0.825 kW
Weight14.72 kg
Product typedrum pumps, electric
Discharge hose length2000 mm
Suppliedpre-assembled, final assembly by customer
