Ref.: 656590 49

Electric drum pump set – Jessberger for highly aggressive media

Electric drum pump set – Jessberger
Electric drum pump set – Jessberger, for highly aggressive media, PVDF, 30 – 40 l/min-0
Electric drum pump set – Jessberger (Product illustration 2)-1

PVDF, 30 – 40 l/min

£1,875.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Product description
  • Highest possible level of chemical resistance due to the material PVDF and a shaft made of Hastelloy
  • Safe and fast refilling and filling of chemicals

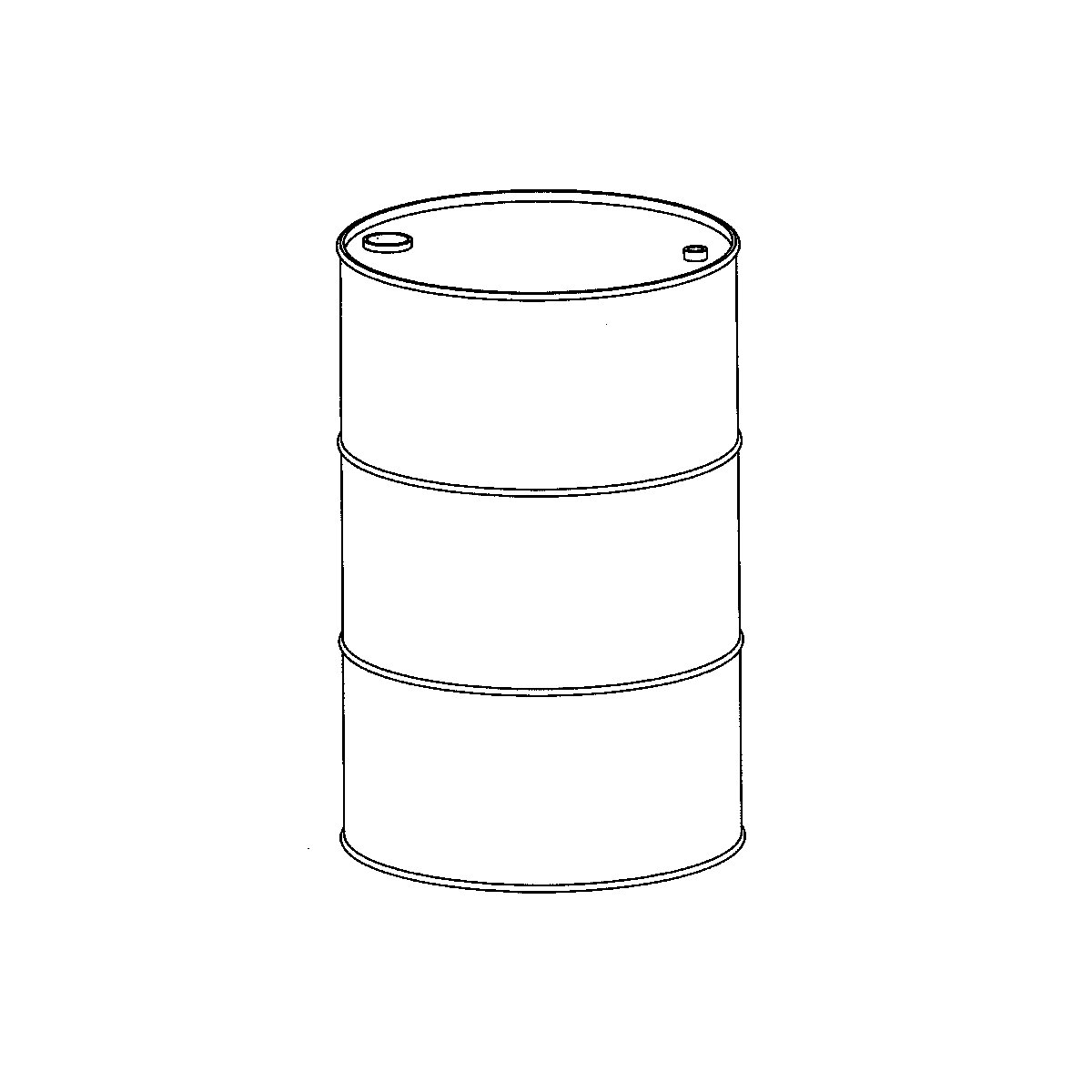

  • Suitable for 200 litre drums

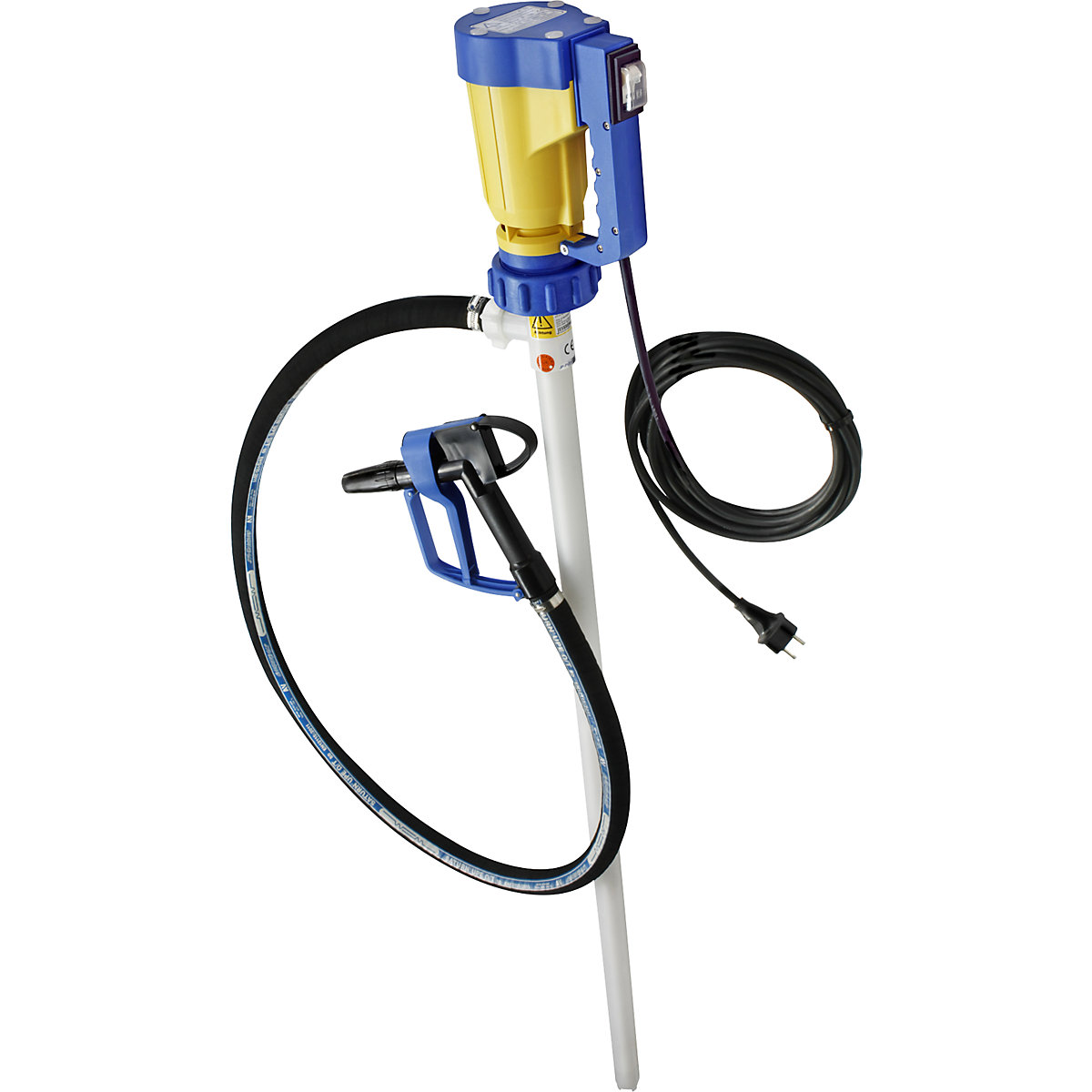

Electric drum pump set made of PVDF for 200 litre drums.
For highly aggressive media such as chromic acid, hydrofluoric acid, sodium hypochlorite, nitric acid.
Pump rate 30 – 40 litres/min.

Universal electric motor, 230 V, 50/60 Hz, 250 W, protection class IP24, double insulation for protection class II, overcurrent circuit breaker with integrated zero voltage trip, thermal protection, 5 m cable with safety plug.
PVDF pump unit, external Ø 32 mm, immersion tube length 1000 mm, HC shaft, connection thread G 1'', hose connection 3/4''.

2 m crosslinked polyethylene hose 3/4''.
2 stainless steel hose clamps.
1 PVDF tap/nozzle with seals made of FKM 3/4''.
Please note: if media compatibility is unclear, please enquire about the suitability of pumps beforehand.
Resistant to aggressive, corrosive chemicals
Resistant to aggressive, corrosive chemicals
Technical data
Design of pumpdrum pump set
For mediachromic acid, hydrofluoric acid, sodium hypochlorite, nitric acid
For liquidshighly aggressive media
Type of connectionAG 1''
Material of pumppolyvinylidene fluoride (PVDF)
Drive shaft materialHastelloy
Immersion depth1000 mm
Immersion tube diameter32 mm
Pump rate30 - 40 l/min
Pumping height10 m wc
Tube diameter32 mm
Immersion tube length1000 mm
Nominal hose diameter3/4 ''
ThreadAG 1 inch
Max. viscosity at +20 °C400 mPas
Featuremax. density 1.3
Scope of deliverypump, 2 m PVC hose 3/4'', 2 stainless steel hose clamps, 1 polypropylene tap/nozzle
Voltage230 V
Power450 kW
Weight5.06 kg
Product typedrum pumps, electric
Discharge hose length2000 mm
Suppliedpre-assembled, final assembly by customer
