Ref.: 756237 49

First Mate portable davit crane – Thern powder coated

First Mate portable davit crane – Thern
First Mate portable davit crane – Thern, powder coated, max. load 385 kg-0
First Mate portable davit crane – Thern (Product illustration 2)-1
First Mate portable davit crane – Thern (Product illustration 3)-2

max. load 385 kg

£2,579.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Product description
  • Complete crane set, powder coated, with manual wire rope winch, base mount and steel rope with load hook
  • Ideally suited for changing locations
  • Swivels 360°
Fixed crane arm length, adjustable crane arm angle for three different operating positions, folds together for transport and storage. Virtually unlimited areas of use.

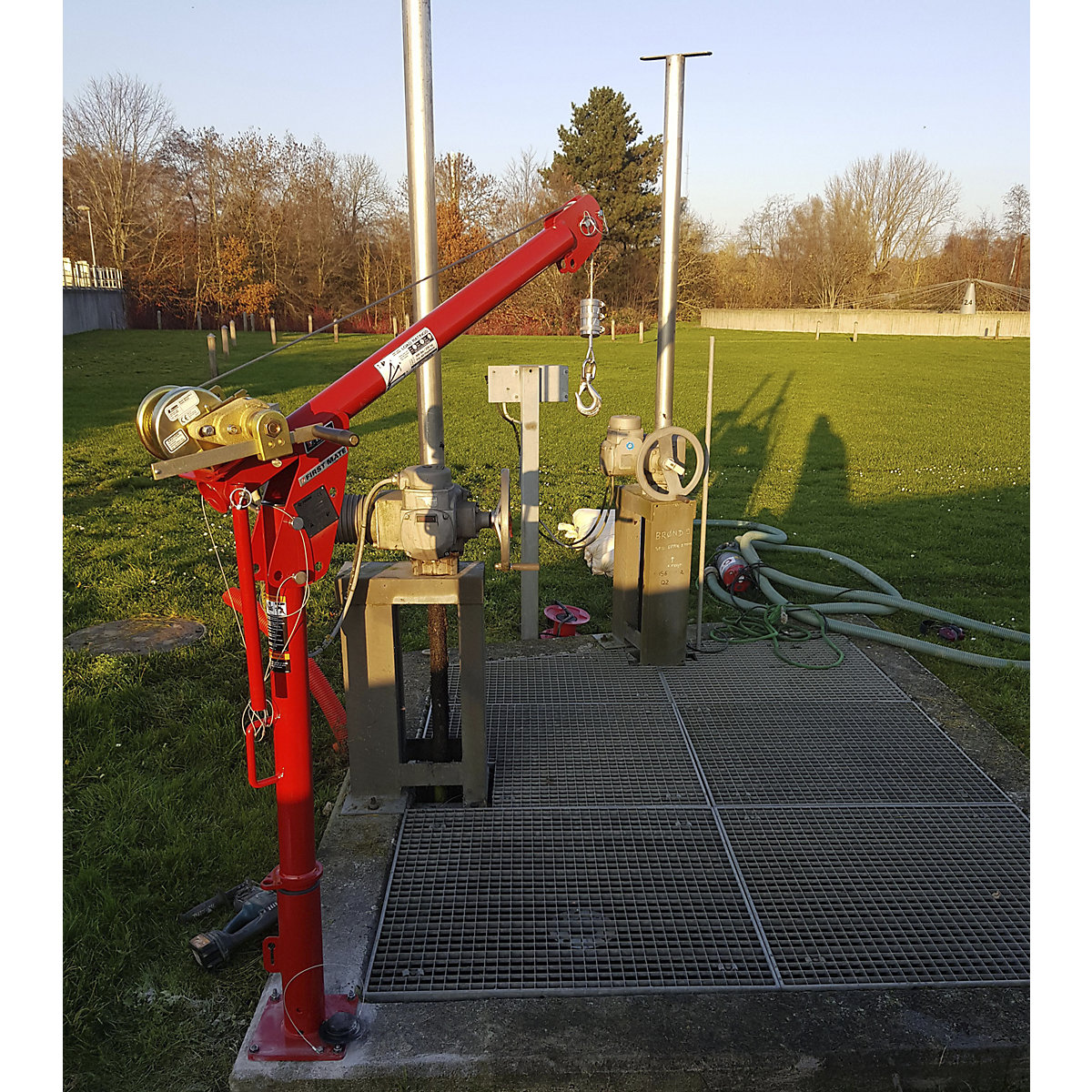

Whether on construction sites, roofs of buildings, silos or ships – the areas of use for these cranes is virtually unlimited.
Do you need the crane somewhere else? No problem! Its low weight and the innovative snap fastenings allow it to be removed within minutes and be set up somewhere else, and all this without tools.

Supplied complete with: crane powder coated in the colour red, manual wire rope winch with zinc plated spur gear transmission, powder coated base mount platform (without set of bolts for mounting, see Accessories), steel rope with load hook, zinc plated rope, Ø 4.8 mm, length 13.7 m.

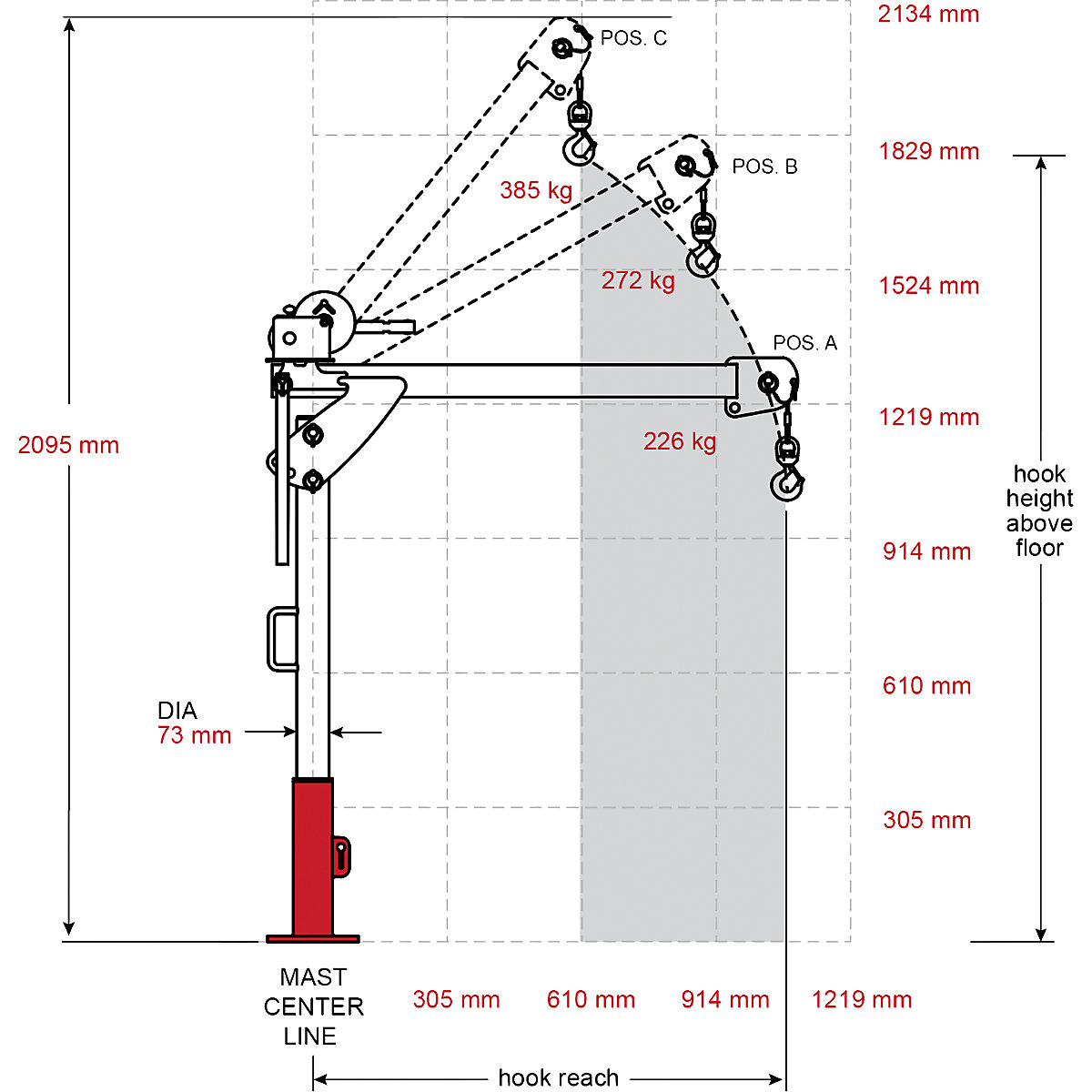

Technical data
Max. load385 kg
Max. load (at jib length mm)609 mm – 385 kg, 889 mm – 272 kg, 1066 mm – 225 kg
Width1066 mm
Height1778 mm
Length1066 mm
Lifting height max. cantilever arm extended1778 mm
Max. crane arm length1066 mm
Min. crane arm length609 mm
Finishpowder coated
Max. hook height with max. crane arm angle1778 mm
Max. hook height with min. crane arm angle1016 mm
Weight44 kg
Product typeslewing cranes
Suppliedpre-assembled, final assembly by customer
