Ref.: 572106 49

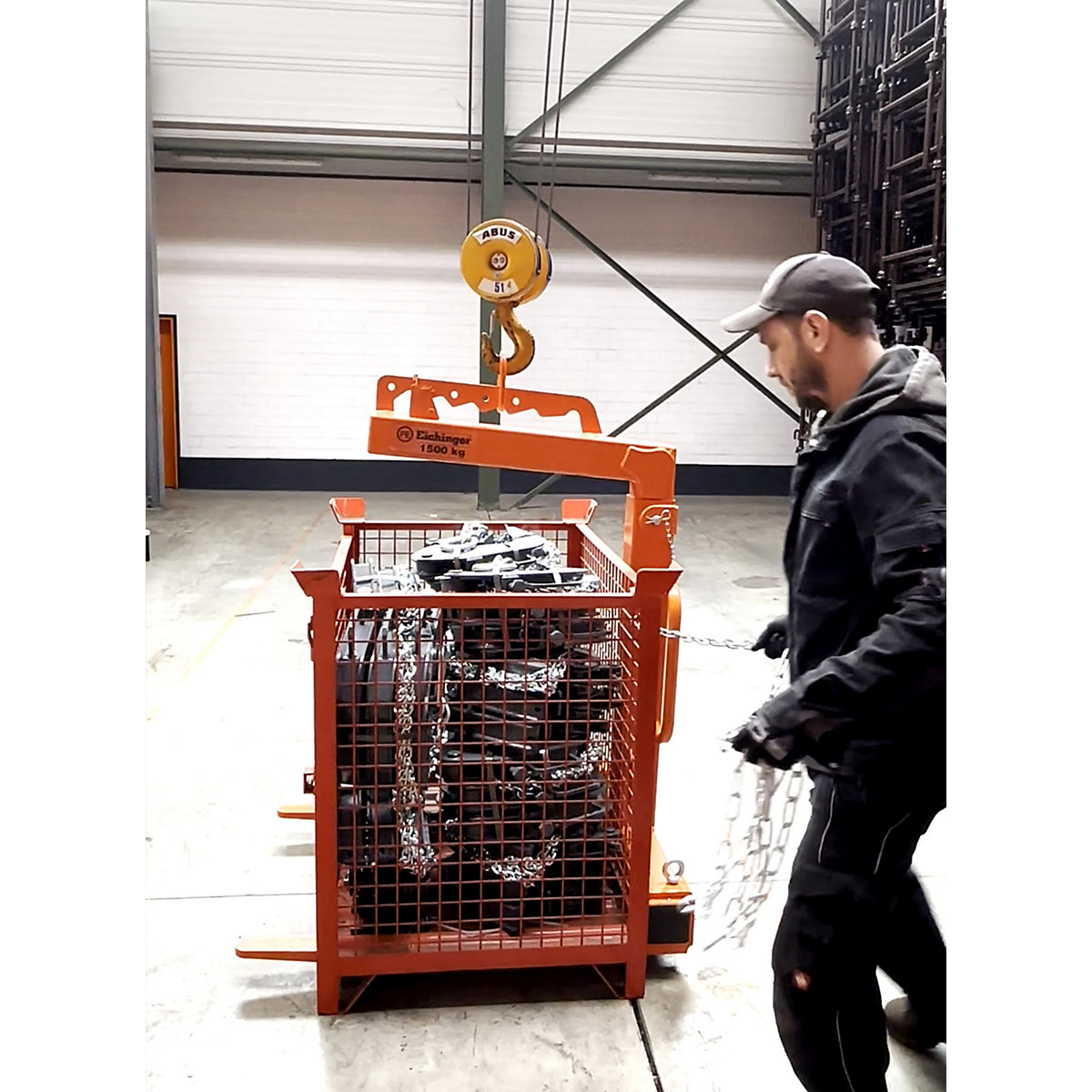

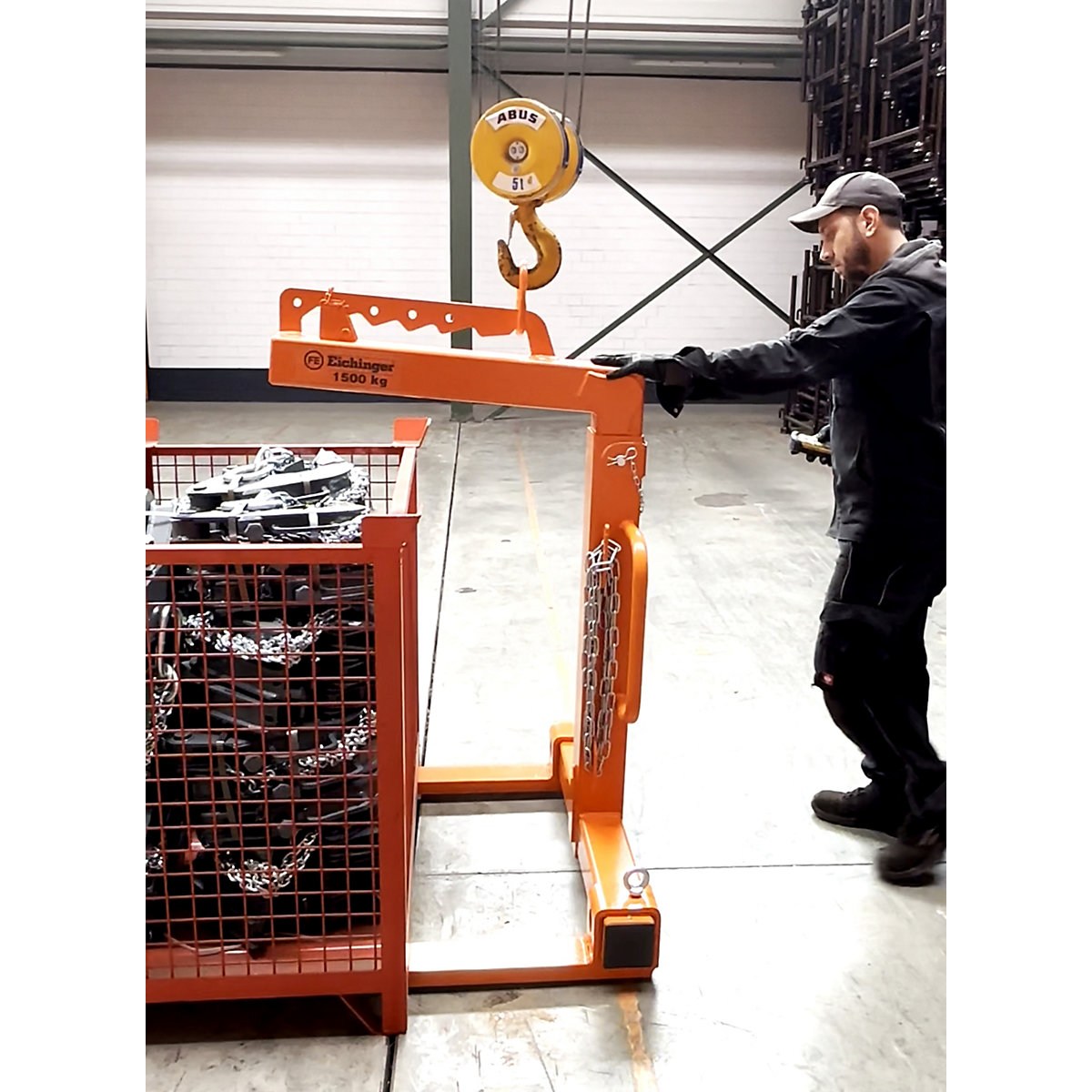

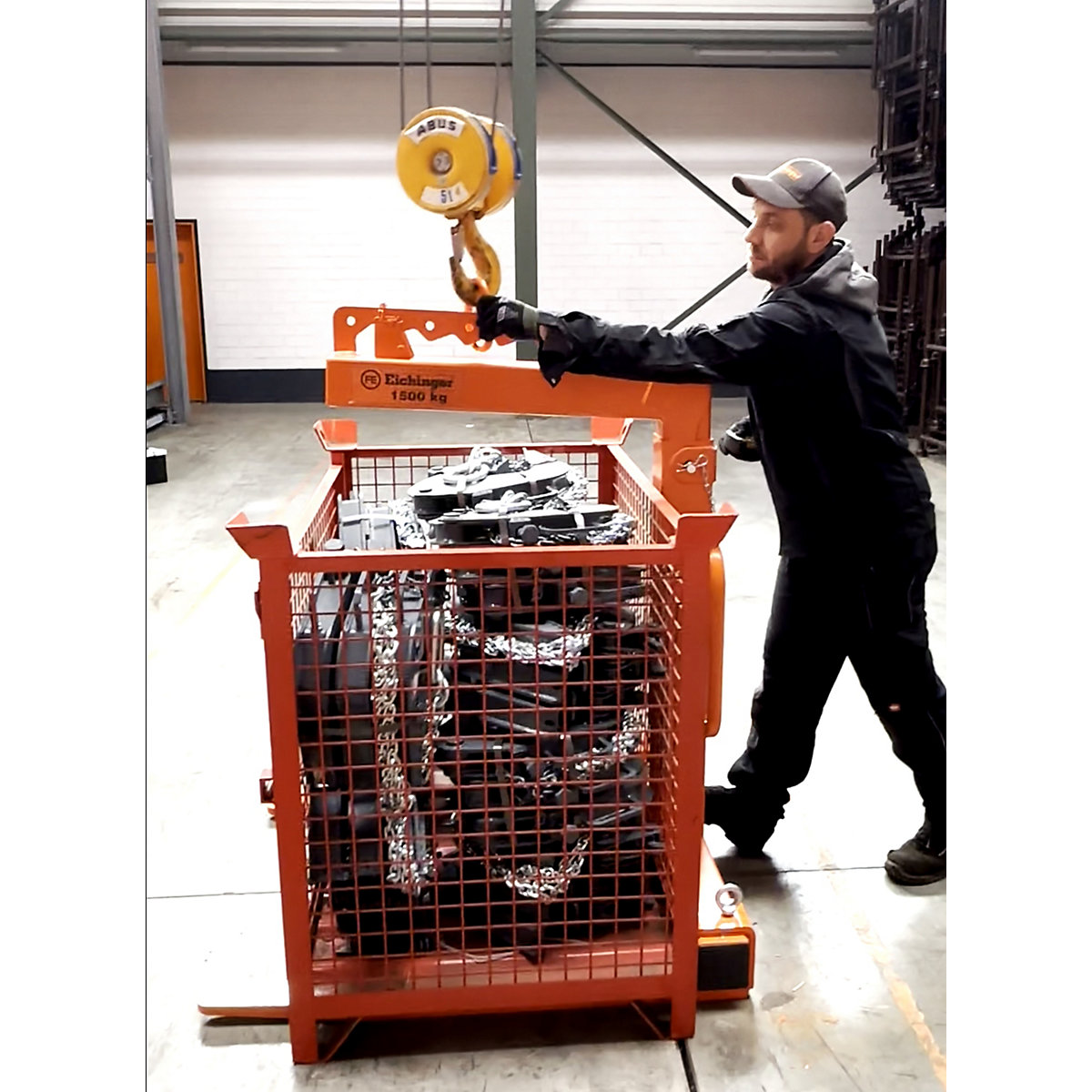

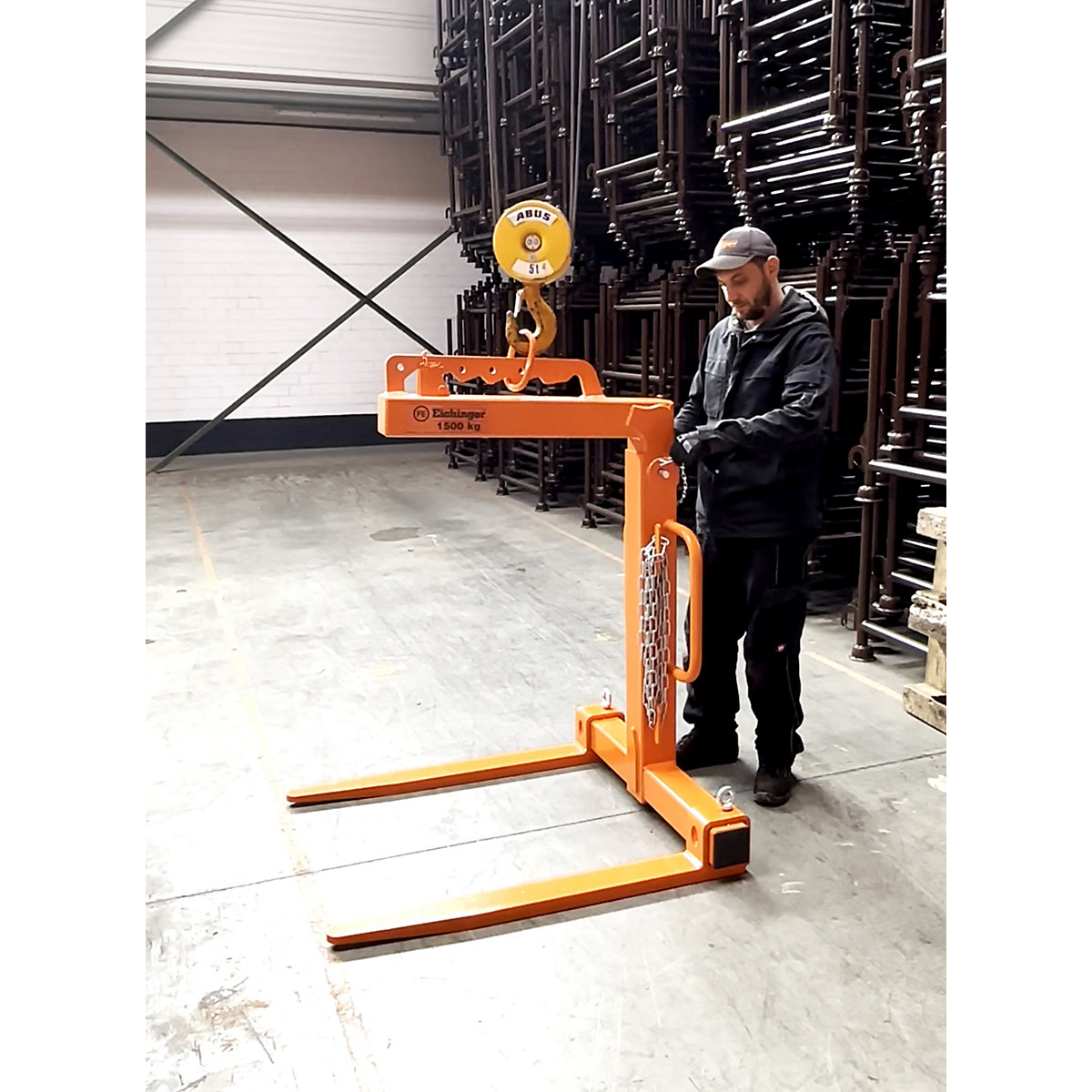

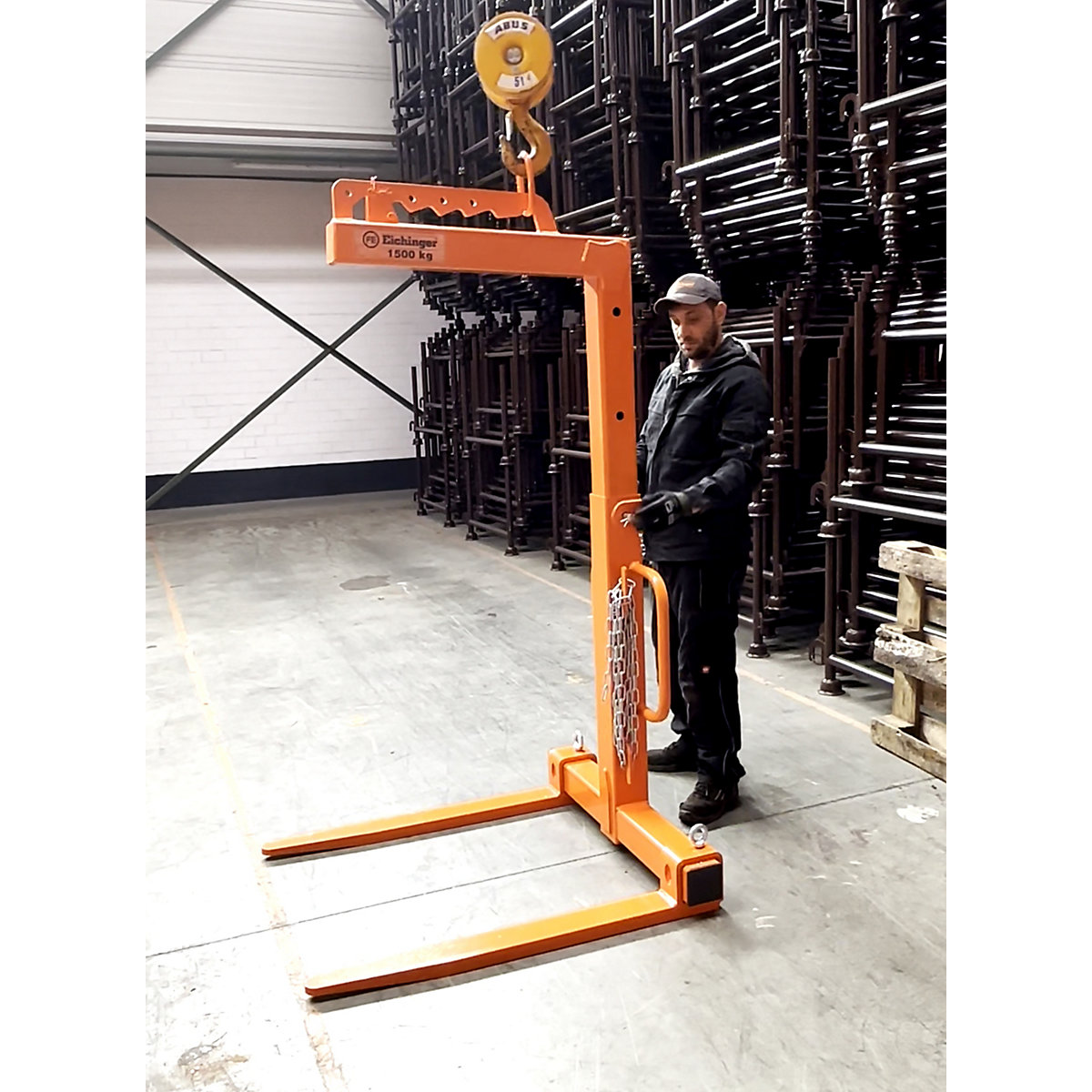

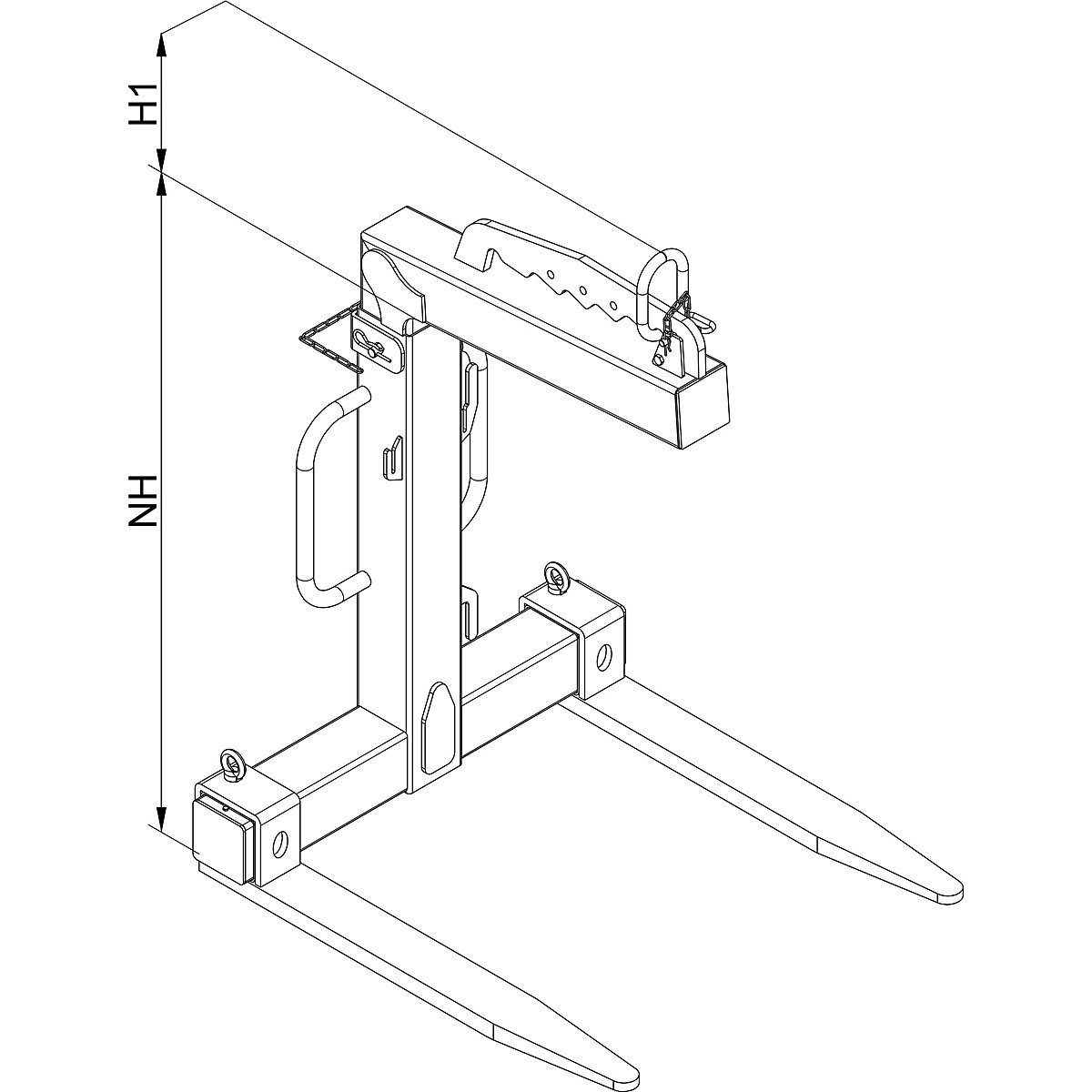

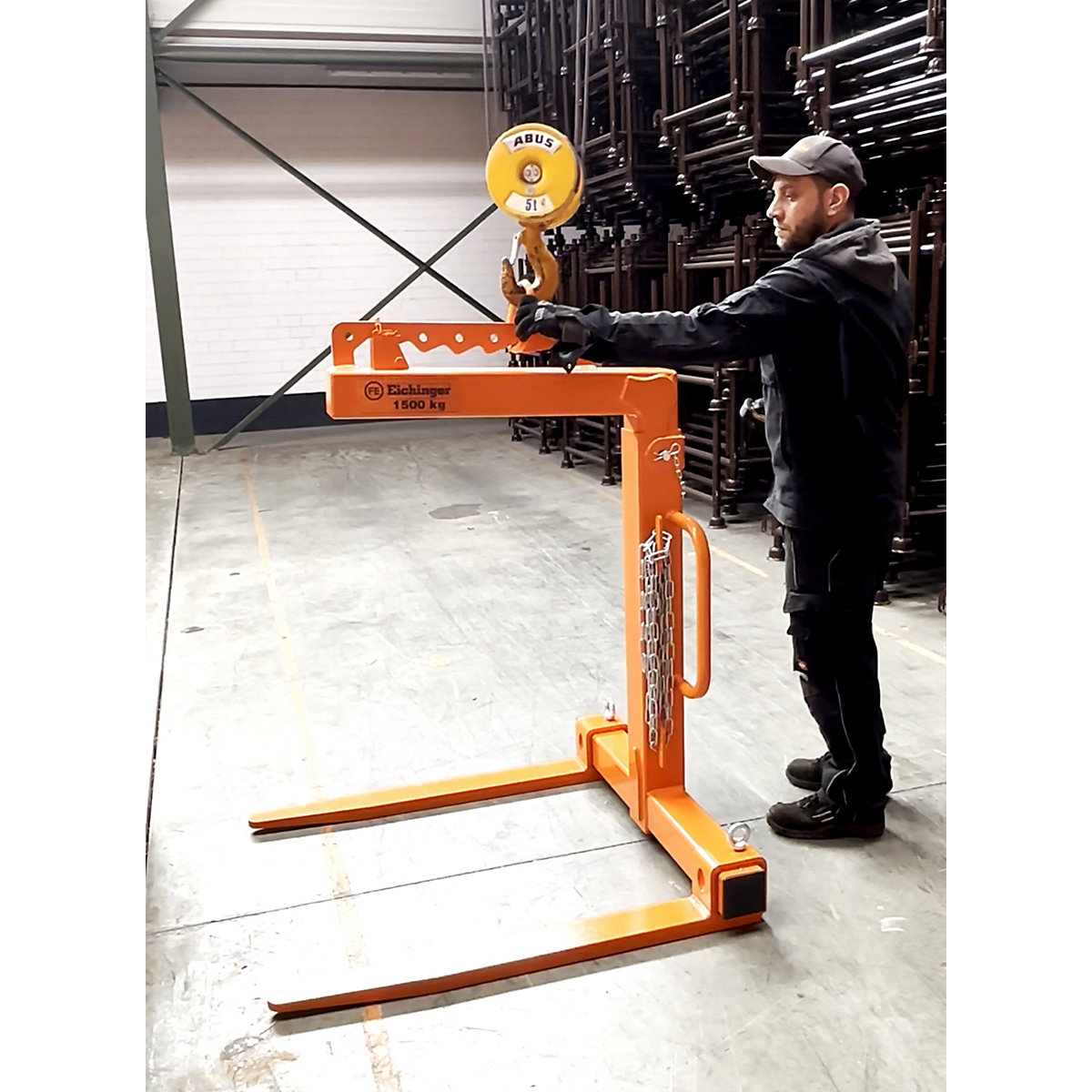

Balanced crane fork, manual – Eichinger effective height 1150 – 1750 mm, light duty version

Balanced crane fork, manual – Eichinger

max. load 600 kg

£1,150.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Product description
  • Manual weight balancing
  • Low weight
  • Adjustable effective height and fork width
Infinite manual fork width adjustment from 450 – 950 mm and effective height can be adjusted from 1150 – 1750 mm using locking pins. Weights are balanced manually by positioning the individual support ring.
Supplied complete with 4 m safety chain.

Forks made of tubular material.

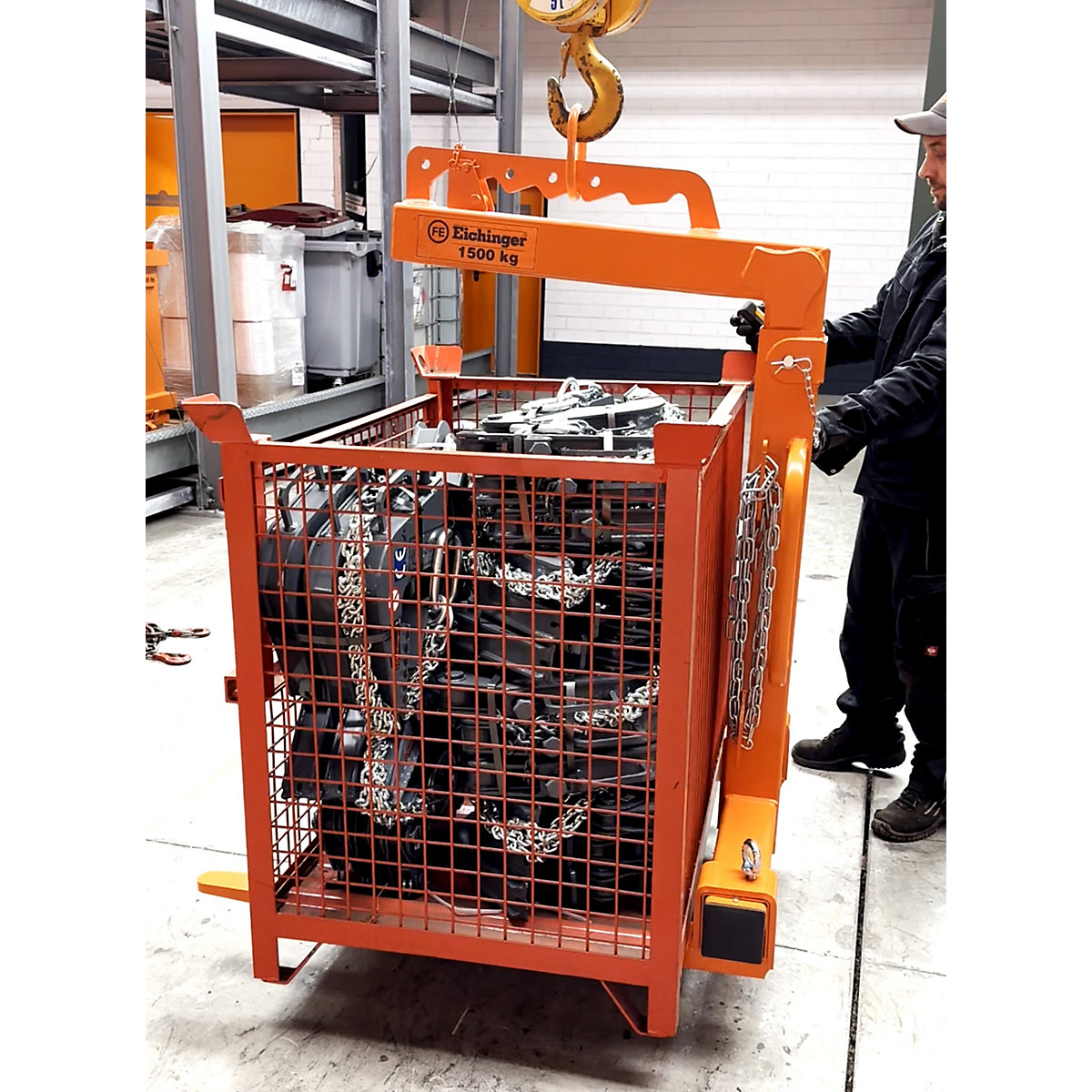

Available upon request with safety cage or loading box in normal size or in any other special size required.
Technical data
Load centre680 mm
Effective height from1150 mm
Fork length1000 mm
Weight compensationmanual
Materialsteel, painted
Colourpure orange RAL 2004
Effective height up to1750 mm
Fork adjustment range450 – 950 mm
Product typecrane forks
Suppliedassembled
Max. load600 kg
Fork width120 mm
Thickness of fork prong40 mm
Weight120 kg
