Ref.: 803925 49
Tilting skip with scissor tilt mechanism
capacity 500 l, pure orange RAL 2004
Capacity [m³]
Overall length [mm]
Overall width [mm]
Overall height [mm]
Height of front edge [mm]
Container length [mm]
Container width [mm]
Container height [mm]
Colour
This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 803925 49
Tilting skip with scissor tilt mechanism
capacity 500 l, pure orange RAL 2004
capacity 500 l, pure orange RAL 2004
Ref.: 803925 49
Product not available
Currently not available for this quantityProduct description
- Can be tilted at any height using a cable pull from the driver's seat
- Chain restraint to prevent unintentional slippage
- The scissor tilt mechanism guarantees emptying with ease using a forklift

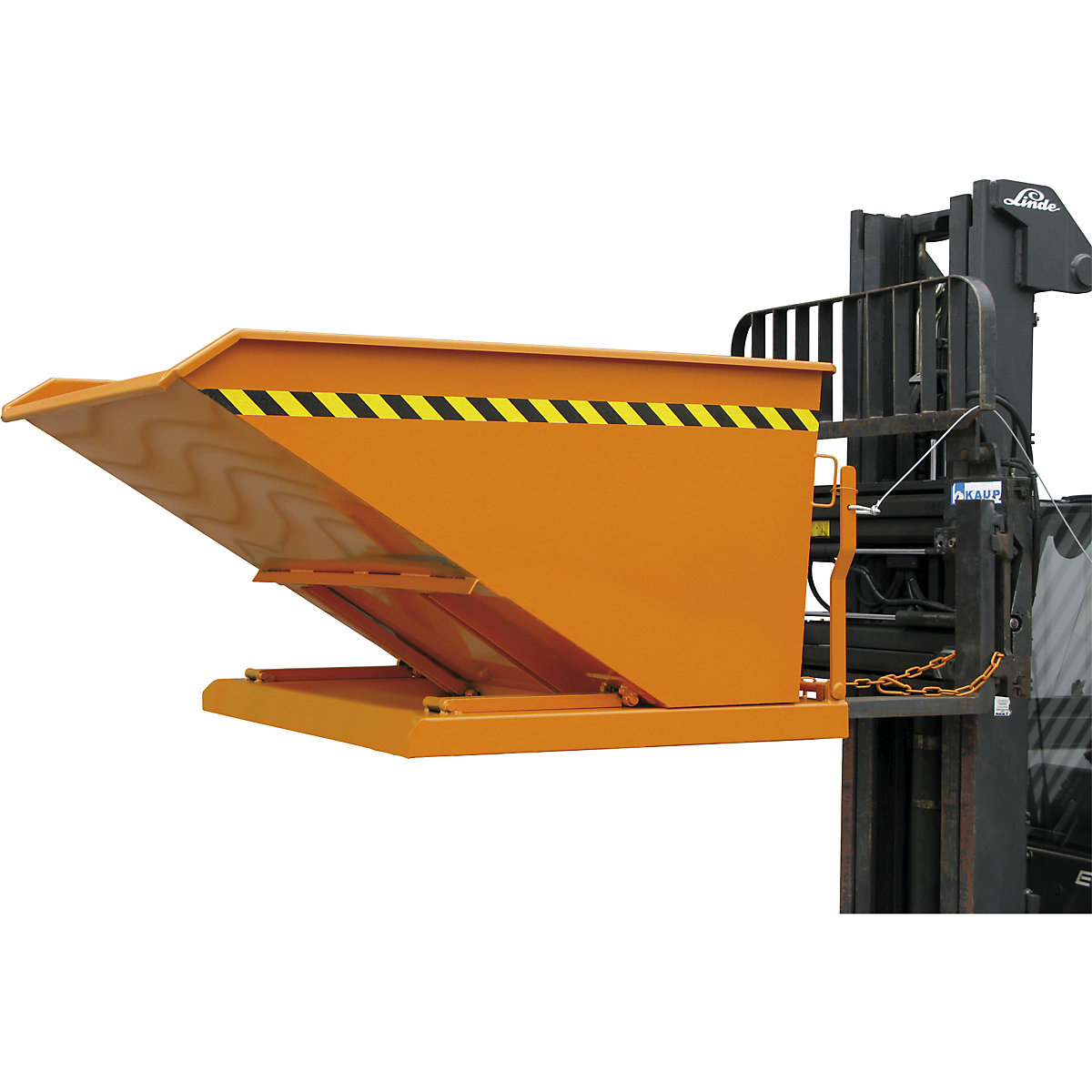

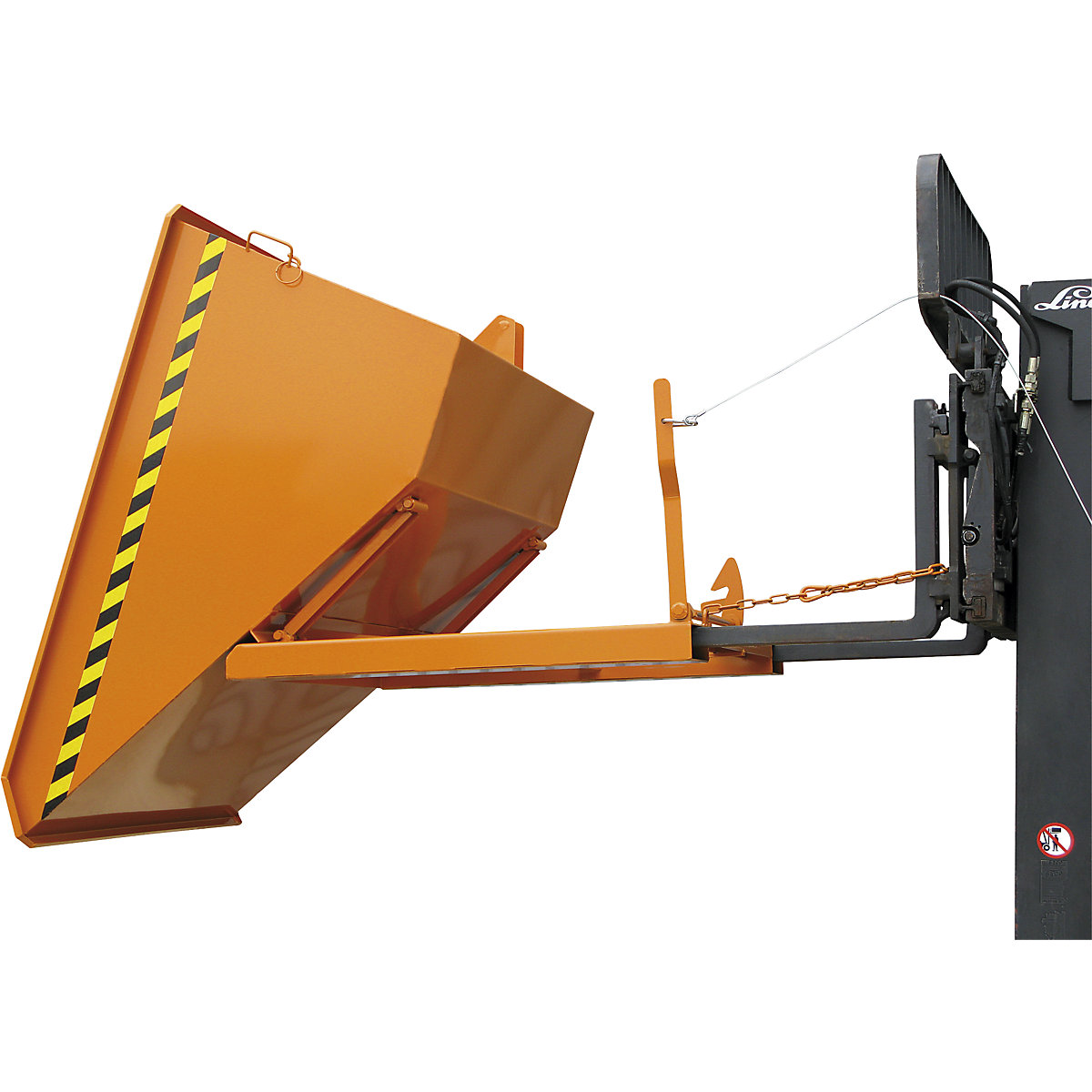

The tilting skip with a low container is equipped with a special scissor type tilting mechanism. The base frame and the container feature a robust connection using the scissor type arms, ensuring optimal control during the tilting process. Contact with solid obstacles, such as the edge of a refilling container, does not affect the tilting process either. With a safety device to prevent unintentional slippage and tipping, and a stable base frame with integrated forklift pockets and crane eyes.
Optionally available:
– 2 swivel castors and 2 fixed castors
– Push handle
– Cover, zinc plated, multi-part
– Hydraulic tilting mechanism
– Crane eyelets
– Towing connection
– Powder coated in special RAL colour
– Painted in special RAL colour
– Hot dip galvanised model
– Stainless steel model
Optionally available:
– 2 swivel castors and 2 fixed castors
– Push handle
– Cover, zinc plated, multi-part
– Hydraulic tilting mechanism
– Crane eyelets
– Towing connection
– Powder coated in special RAL colour
– Painted in special RAL colour
– Hot dip galvanised model
– Stainless steel model
Technical data
Max. load | 1000 kg |
---|---|
Design of tipping container | self-tipping container, emptied using a cable pull from the driver's seat |
Finish | powder coated |
Fork pocket dimensions | 190x80 mm |
Material | steel |
Material thickness | 3 mm |
Wheel fittings | without castors |
Product type | tilting skips |
Supplied | assembled |
Capacity | 0.5 m³ |
Overall length | 1530 mm |
Overall width | 830 mm |
Overall height | 795 mm |
Height of front edge | 710 mm |
Container length | 1420 mm |
Container width | 750 mm |
Container height | 695 mm |
Colour | pure orange RAL 2004 |
Forklift pocket spacing | 185 mm |
Weight | 150 kg |
