Ref.: 687953 49

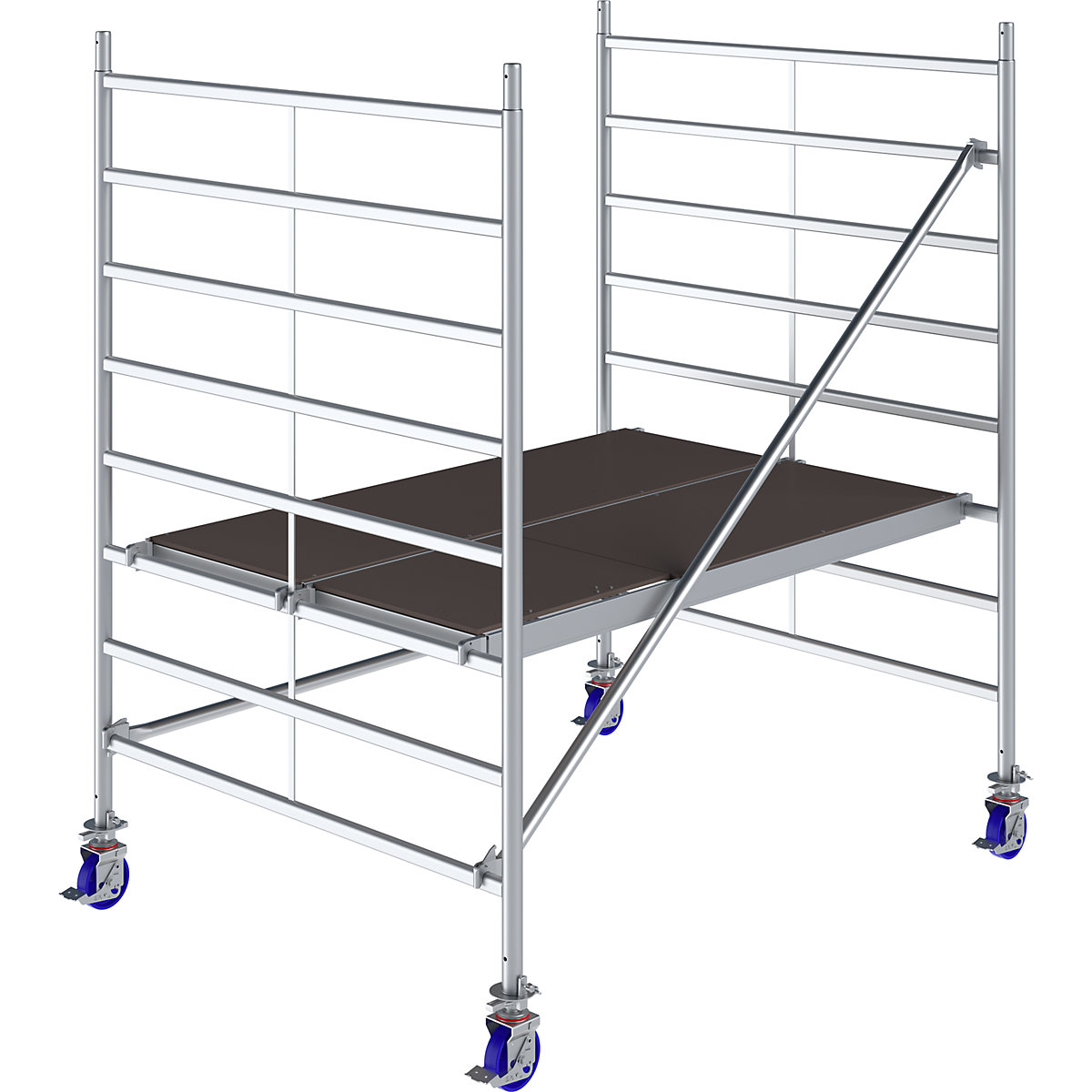

STABILO Series 50 mobile access tower – KRAUSE platform length 2 m
working height 3 m
Platform height [mm]
This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 687953 49
STABILO Series 50 mobile access tower – KRAUSE platform length 2 m
working height 3 m
working height 3 m
£1,479.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Product description
- Maximum platform clearance of 2 m for convenient and safe assembly without tools
- Tested by TÜV, load capacity 200 kg/m² (scaffolding group 3) in accordance with EN 1004-21
The professional aluminium mobile access tower with double work surface.
Tested by TÜV, load capacity 200 kg/m² (scaffolding group 3) in accordance with EN 1004-1.
Safe assembly is ensured by securing the GuardMatic system guardrail frame before suspending the next platform level. When climbing through the platform, there is a complete guardrail to prevent falls.
The integration of diagonals into the GuardMatic system ensures easy and safe assembly. For transport or storage, the guardrail frame can be folded to save space.
The 6-point fastener for the GuardMatic system ensures maximum stability at heights. The unique self-locking KRAUSE locking system with a form-fitting connection allows easy, fast and safe assembly and disassembly.
The innovative shape of the diagonals maximises the space available on the platform to use, and they are never in the way.
Maximum platform clearance of 2 m for convenient and safe assembly without tools.
Sturdy steel guide bars ensure a safe footing (from working height 4.40 m).
Height adjustable castors (Ø 150 mm) also allow use on uneven ground due to the integrated spindle thread (infinitely variable adjustment from 220 – 335 mm). The large surface area offers plenty of space for personnel and materials. Stabilisers that are easy to fit with an infinitely telescopic swivel foot (adjustment range up to 230 mm) provide a secure support, and stability when ascending, from a working height of 6.40 m on any ground.
Tested by TÜV, load capacity 200 kg/m² (scaffolding group 3) in accordance with EN 1004-1.
Safe assembly is ensured by securing the GuardMatic system guardrail frame before suspending the next platform level. When climbing through the platform, there is a complete guardrail to prevent falls.
The integration of diagonals into the GuardMatic system ensures easy and safe assembly. For transport or storage, the guardrail frame can be folded to save space.
The 6-point fastener for the GuardMatic system ensures maximum stability at heights. The unique self-locking KRAUSE locking system with a form-fitting connection allows easy, fast and safe assembly and disassembly.
The innovative shape of the diagonals maximises the space available on the platform to use, and they are never in the way.
Maximum platform clearance of 2 m for convenient and safe assembly without tools.
Sturdy steel guide bars ensure a safe footing (from working height 4.40 m).
Height adjustable castors (Ø 150 mm) also allow use on uneven ground due to the integrated spindle thread (infinitely variable adjustment from 220 – 335 mm). The large surface area offers plenty of space for personnel and materials. Stabilisers that are easy to fit with an infinitely telescopic swivel foot (adjustment range up to 230 mm) provide a secure support, and stability when ascending, from a working height of 6.40 m on any ground.
Technical data
| Platform width | 1500 mm |
|---|---|
| Platform length | 2000 mm |
| Material | aluminium |
| Max. load | 200 kg/m² |
| Wheel diameter | 150 mm |
| Scaffolding width | 1.9 m |
| Scaffolding length | 2.05 m |
| Conforms to | DIN EN 1004-1 |
| Product type | standard mobile access towers |
| Supplied | flat pack |
| Platform height | 1000 mm |
| Working height | 3 m |
| Standing height | 1 m |
| Tower height | 2.3 m |
| Weight | 72 kg |
