Ref.: 691482 WP

ECO GENUINO ceiling fan rotor blade Ø 1220 mm

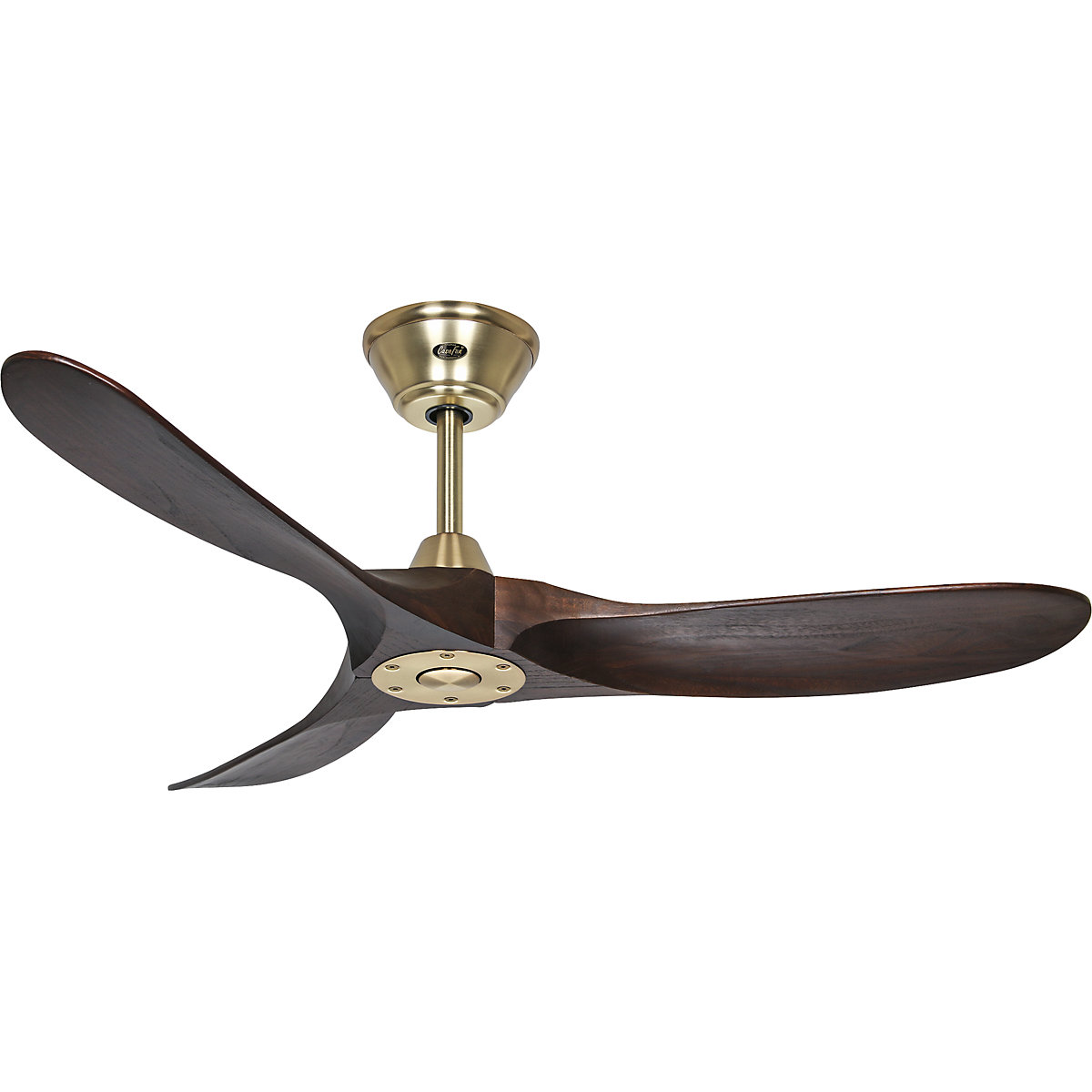

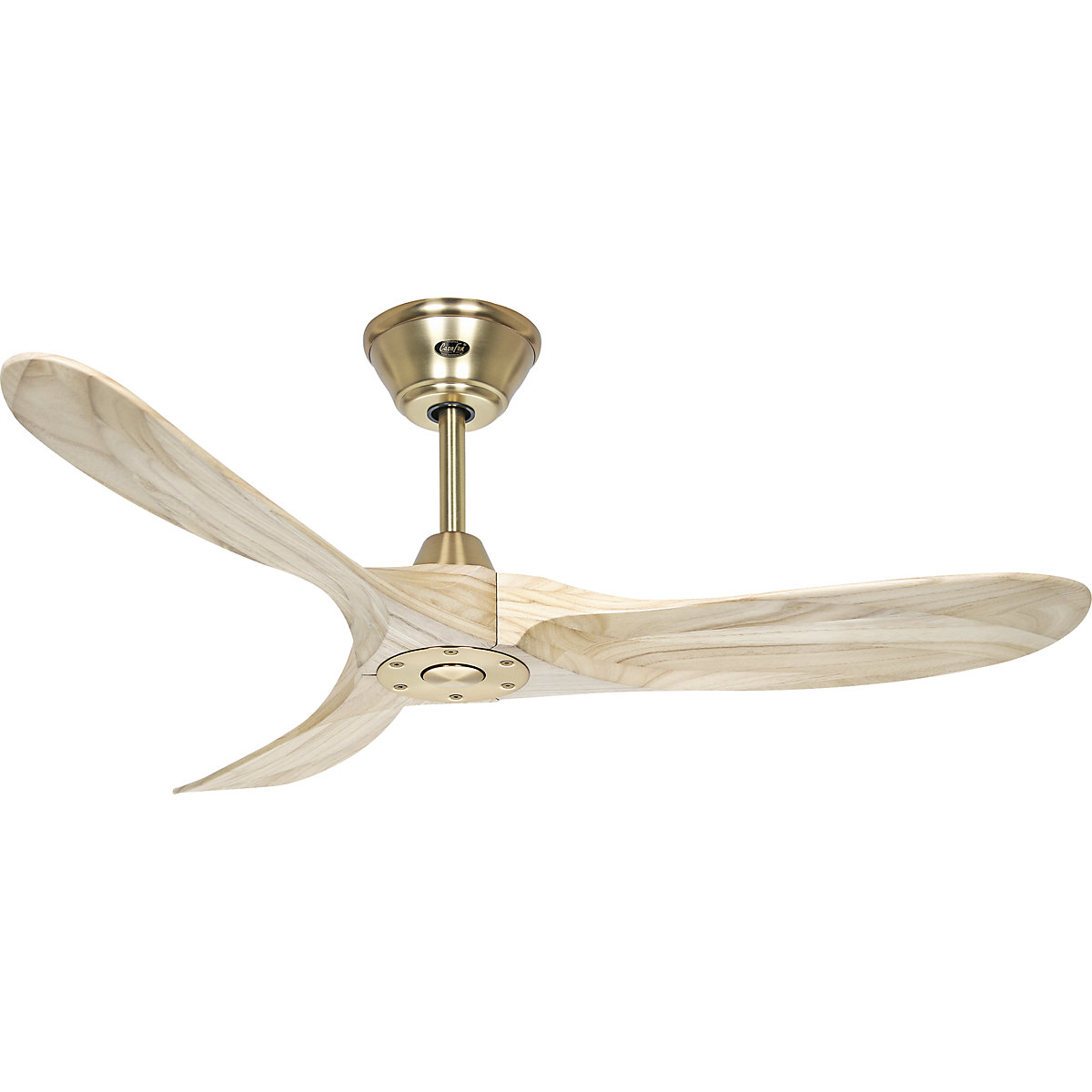

ECO GENUINO ceiling fan

natural finish / brass

£689.00
£579.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Product description
  • For rooms from 11 to 16 m², output of 6627 m³/h

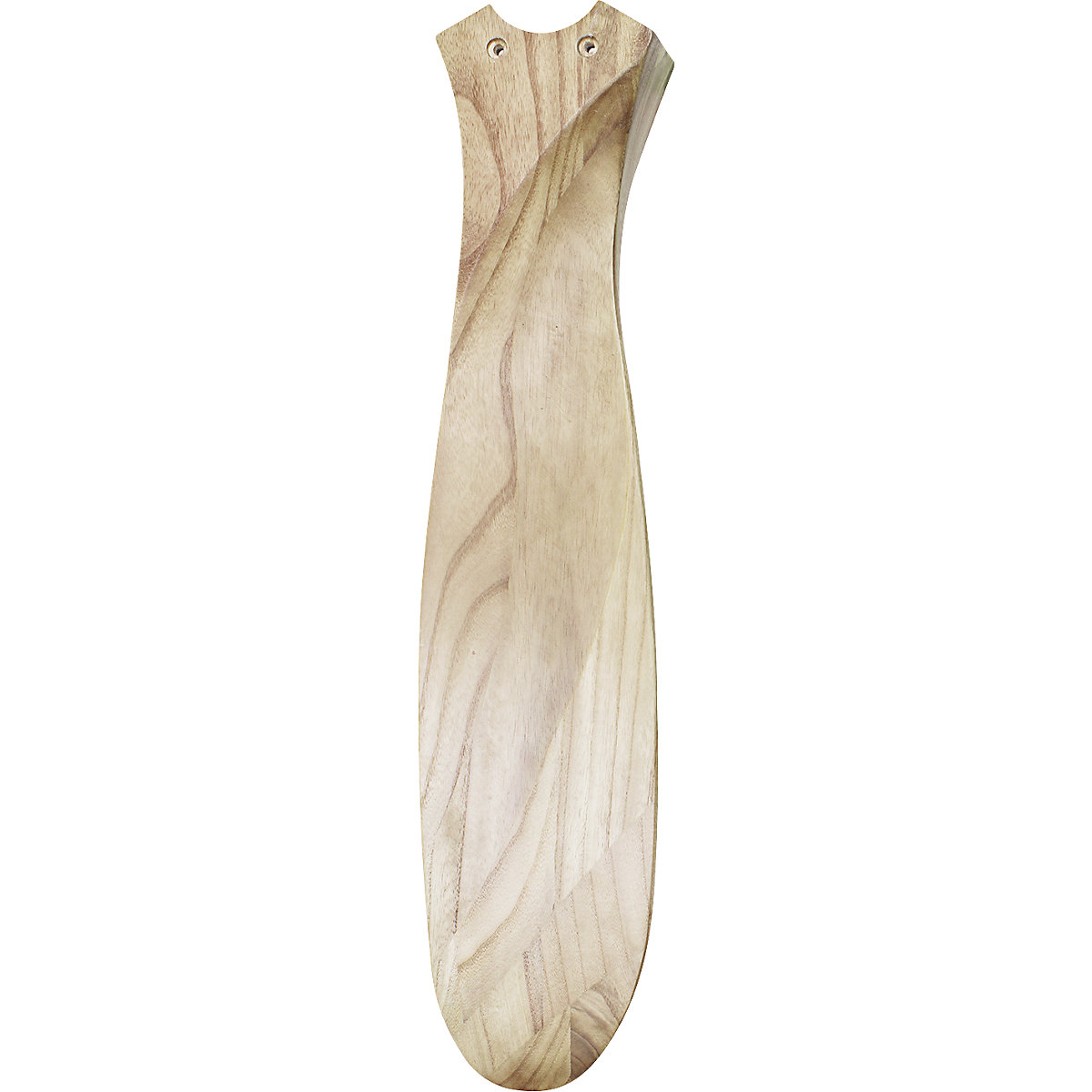

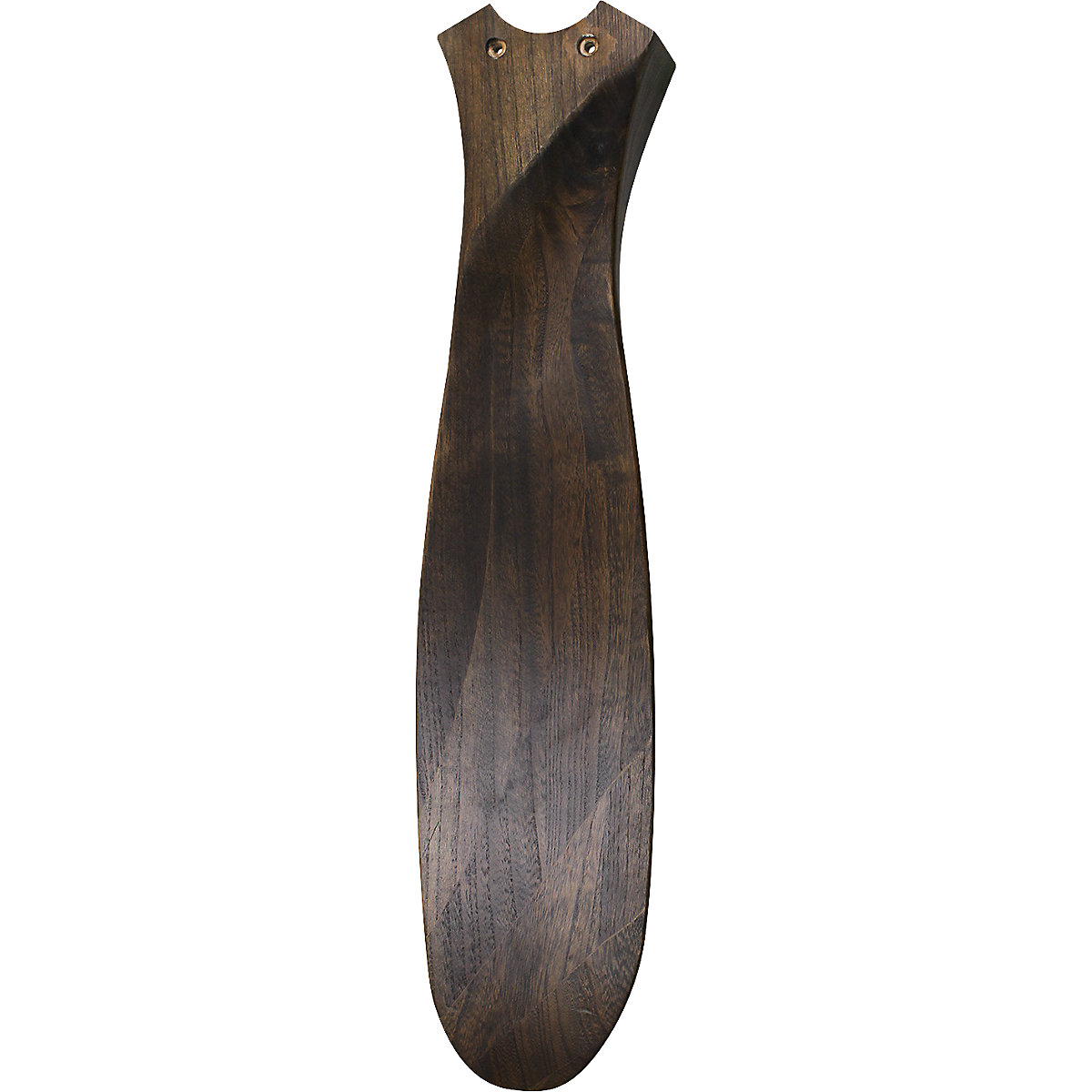

  • 3 hand-made solid wood blades – an eyecatcher for any room, whether in the office or at home
  • Very energy efficient, service ratio 9.8 (m³/min.)/W in accordance with EU Directive 206/2012
  • 6 forwards/reverse rotation speed settings (summer and winter mode) selected using remote control
  • Lowest setting guarantee to not cause draughts, also ideal for recirculating heat in winter
  • Can be installed at angles up to 12°
  • 25-year manufacturer warranty on the motor

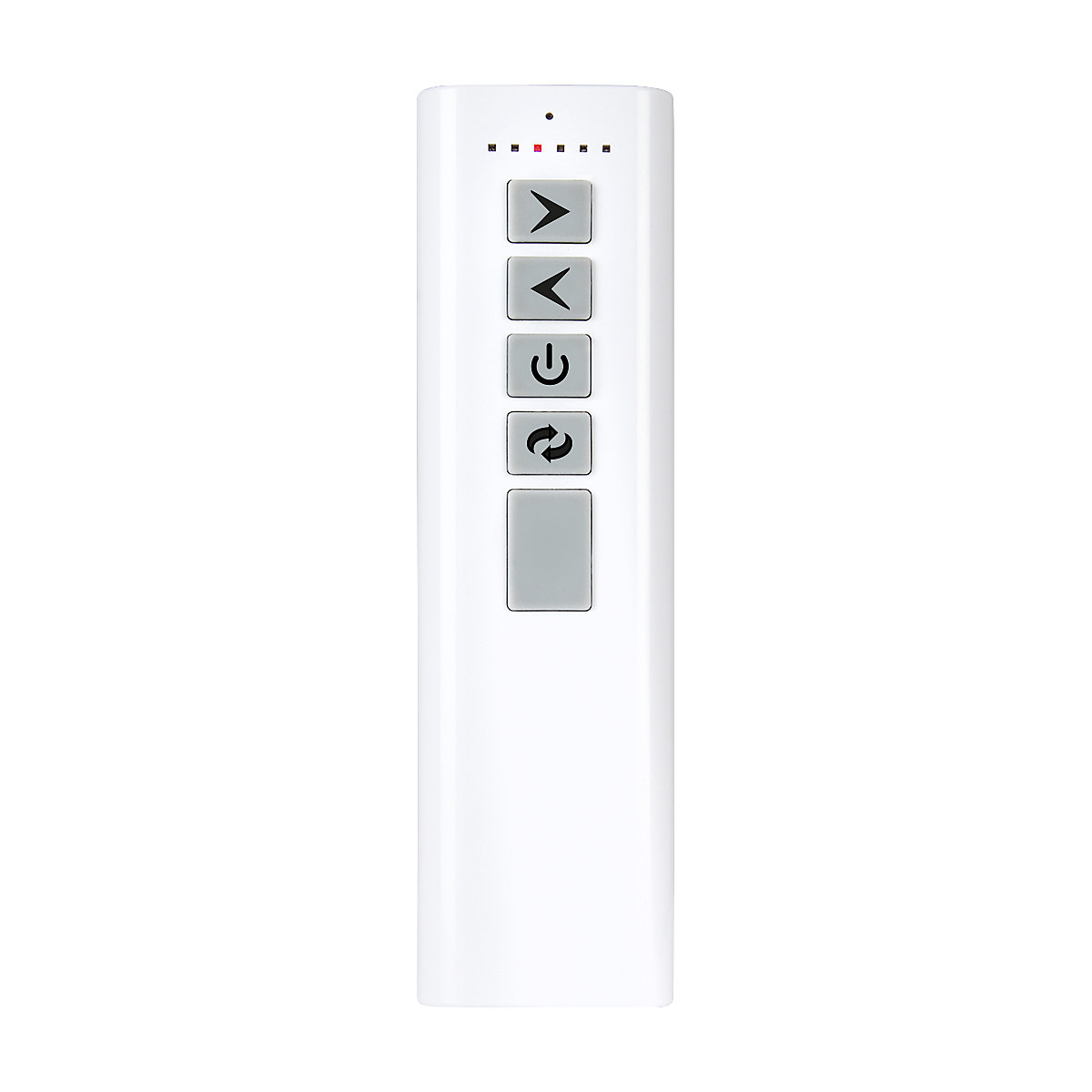

State-of-the-art, energy saving DC/EC motor. Includes remote control with sleep timer, slow motion setting. Supplied with wall bracket and 200 mm ceiling rod.

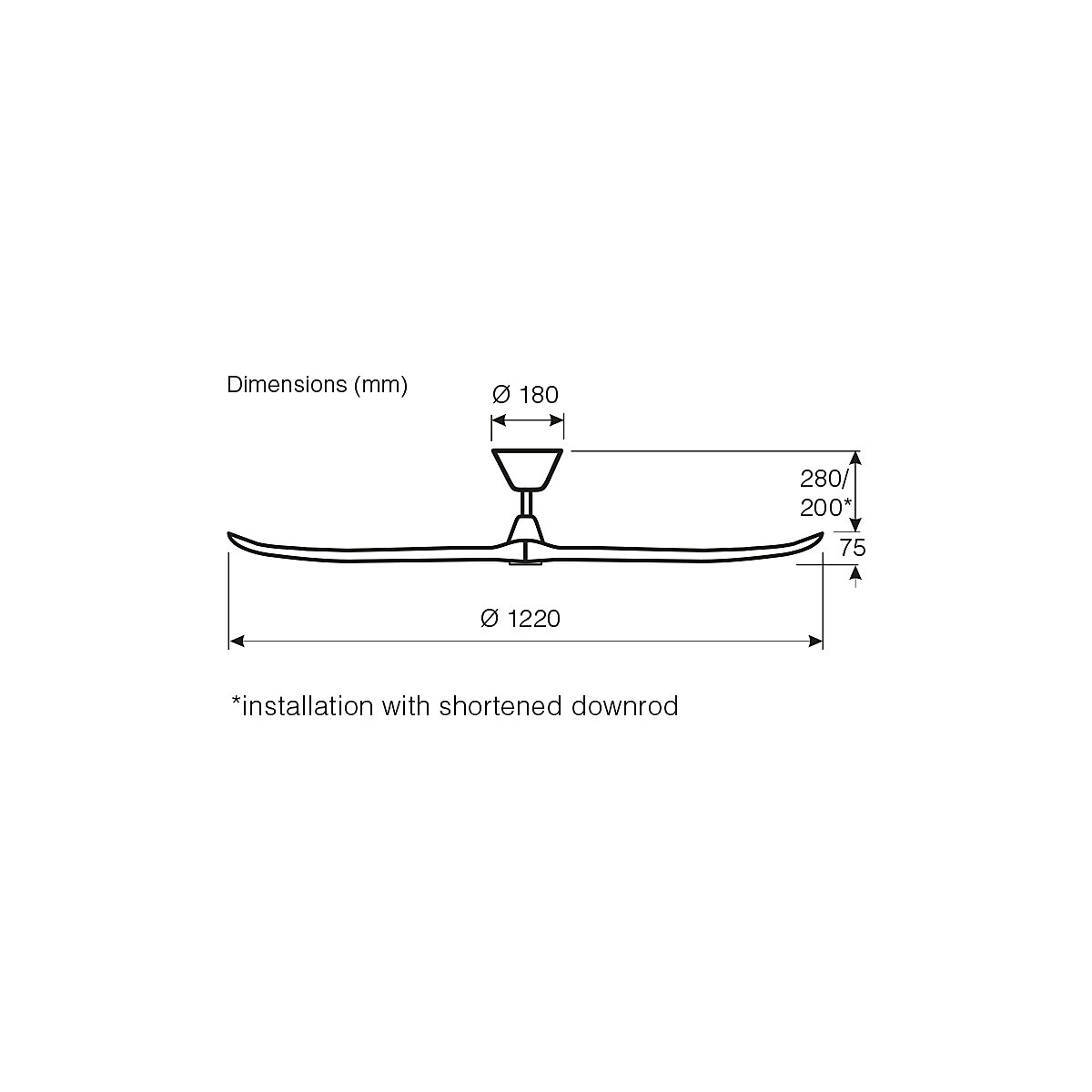

For rooms of normal height, the distance between ceiling and blades is 355 mm.
Performance data:
Speed setting 1 = 50 rpm / power consumption setting 1 = 3.2 watts / sound power level LW = < 32 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 2 = 57 rpm / power consumption setting 2 = 3.4 watts / sound power level LW = < 32 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 3 = 78 rpm / power consumption setting 3 = 4.3 watts / sound power level LW = < 32 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 4 = 96 rpm / power consumption setting 4 = 5.5 watts / sound power level LW = < 32 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 5 = 117 rpm / power consumption setting 5 = 7.1 watts / sound power level LW = < 32.1 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 6 = 144 rpm / power consumption setting 6 = 11.3 watts / sound power level LW = < 34.4 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Air speed 1.5 m above floor = 1.98 m/s. The maximum air speed is specified at the highest setting at a height of 1.5 m above the floor in a room 3 m high. This will help you estimate draughts that will occur at head height when sitting under the ceiling fan. This specification refers to the highest speed. Precise speed levels with as many settings as possible allows pleasant, draught-free operation even in winter by recirculating the warm air that is under the ceiling.
²Noise measurements were carried out at the VDE Testing and Certification Institute in Offenbach. The lower threshold for the measurement by the laboratory is 32 dB(A) for sound power LW and 15 dB(A) for the sound pressure LP –3 m.
³Because many ceiling fans on the market feature one or the other value in the specifications, we are providing the measured noise values as both sound power LW and sound pressure LP –3 m.
Technical data
Rotor blade diameter1220 mm
Number of speed settings6
Max. speed144 rpm
Max. air volume6627 m³/h
Power0.0113 kW
Sound pressure LPA (–3 m)15 dB(A)
Sound power LWA34.4 dB(A)
Fittingsremote control  wall switch
Protection typeIP00
Height355 mm
Width1220 mm
Depth1220 mm
Mains voltage220 – 240 V / ~50 Hz
Ceiling-blade spacing355 mm
Number of blades3 pcs.
Number of blades included with delivery3 pcs.
Product typeceiling fans
Suppliedflat pack
Weight6.84 kg
Housing colourbrushed brass
Blade colournatural
‌
‌
‌
‌
